S6-2214002/PACK1

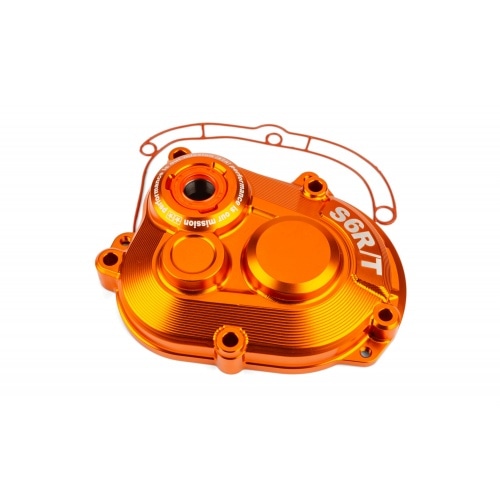

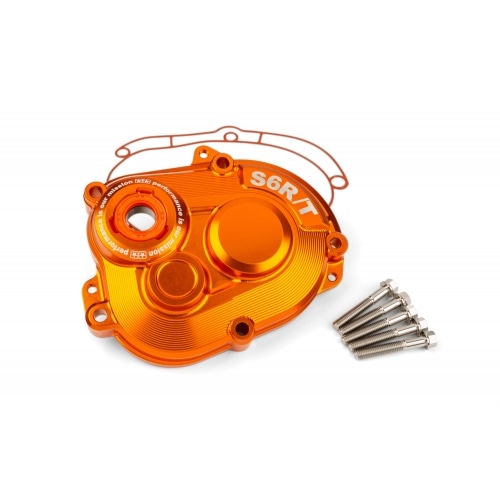

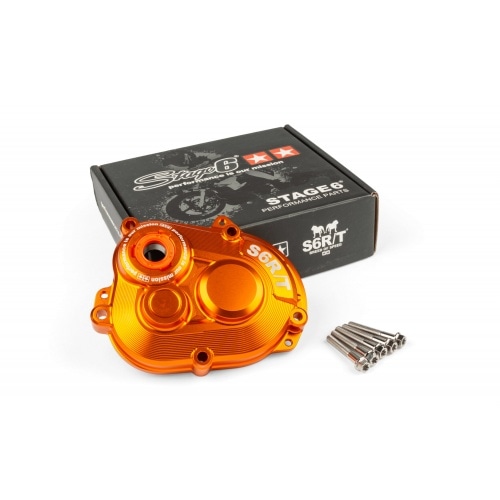

Gearbox Cover Stage6 R/T MK2 Piaggio with titanium bolts Orange
Izsūtīšana no Vācijas noliktavas - Pirmdien
Pieejams pasūtīšanai
248,90€ 315,00€
Cena bonusa punktos: 2988
Stage6 R/T Racing Transmission Cover Piaggio
Upgrade for Stage6 R/T gearbox cover: The CNC-milled Stage6 R/T gearbox cover is now also available with a complete set of titanium bolts (6x Stage6 R/T titanium bolts).
Reinforced CNC-machined Stage6 R/T gearbox cover for 50cc scooters with Piaggio engine (after 2000), like Piaggio Zip, NRG, Liberty, Vespa Primavera / Sprint / ET2, Aprilia SR, Gilera Runner / TPH / Stalker and more – the ultimate cover for tuned Piaggio engines. Also compatible with Malossi C-One and RC-One, 2Fast Piaggio, 8.1 Fireblade, and TRP Factory cases.
Note: Plug & play installation with original gears on Piaggio 2-stroke engines from 1998 onward. For Piaggio 50cc 4-stroke engines, a 2-stroke gearbox from 1998 or newer is required.
Key Features Stage6 R/T gearbox Cover
- FKM O-Ring Seal: The biggest advantage of the Stage6 R/T gearbox cover is the Viton O-ring. The seal provides greater stability and optimizes the connection between the gearbox cover and the crankcase, significantly reducing distortion risks, especially in high-performance setups.
Solid CNC Machining: Made from solid billet aluminium for maximum structural strength and durability. Offers superior resilience compared to cast covers. Precision CNC machining ensures perfect fit and alignment.
High-Quality Bearings: Equipped with precision bearings to minimize wear and extend service life.

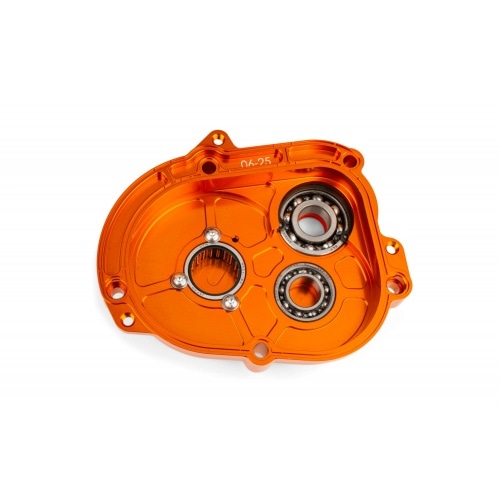

Additional Bearing on Secondary Shafts: Unlike stock covers, the R/T version features two bearings on the secondary shafts: a needle bearing for the wheel shaft and a bearing for the intermediate shaft. This reduces friction and improves efficiency, even on mildly tuned setups.
FKM Oil Seal: Durable orange oil seal ensures optimal sealing of the output shaft.
Additional Threaded Mounting Points: Extra mounting threads simplify removal and installation, ideal for maintenance or quick replacement.
Milled Grooves: Recesses around the oil seal area allow for easy and quick seal replacement.
Design – Stage6 R/T Gearbox Cover
The anodized finish with laser-etched Stage6 R/T logo offers a sleek racing look while also protecting against corrosion and wear. When combined with a ventilated CVT cover, this upgrade gives your Piaggio scooter a clean and aggressive race-style appearance.
Titanium Bolts for Piaggio Gearbox Cover
These high-quality hex bolts with Torx heads offer precise and secure fastening. Made from titanium, they’re extremely durable yet lightweight, making them ideal wherever reducing weight matters. Their corrosion resistance and longevity make them a reliable choice for tuners and enthusiasts looking for premium components.
Technical Details
Precision CNC-machined from solid aluminium
Premium bearings for long-term durability
Dual needle bearings on secondary shafts
FKM output shaft seal (orange)
FKM O-ring seal between cover and case
Orange anodized finish
Laser-engraved logo
- 6x titanium bolts M6x40mm
Fits Piaggio engine scooters with original or long gear ratio, using 16 mm output shaft (models from 1998+)
Gear oil: 90 ml
- Article no.
- S6-2214002/PACK1
- Brand
- Stage6 R/T
- Product type
- Gearbox cover
- Series
- R/T
- Weight
- 0,72 kg
- Aprilia
- Mojito Custom 50cc (Piaggio engine);SR 50cc Funmaster LC (after 07/2003) - Piaggio engine;SR 50cc LC (after 07/2003) - Piaggio Engine;SR 50cc Racing LC (after 07/2003) - Piaggio Engine;SR 50cc R Factory i.e. LC (after 2005) - Piaggio Engine;SR 50cc R LC (after 2005) - Piaggio Engine;SR 50cc Sport LC (after 07/2003) - Piaggio Engine;SR 50cc Street LC (after 07/2003) - Moteur Piaggio;
- Derbi
- Atlantis 50cc AC (after 06/2002) - Piaggio;Atlantis 50cc LC (after 06/2002) - Piaggio;Bullet 50cc AC - Piaggio;GP1 50cc LC - Piaggio;GP 1 Open 50cc;GP1 Racing / Revolution 50cc LC - Piaggio;GP 1 Racing 50cc;GP 1 Replica 50cc;GP 1 Revolution 50cc;
- Gilera
- Ice 50cc AC;Runner 50cc LC (1999 - 2000);Runner 50cc LC (after 2004);Runner 50cc LC CAT (after 2001);Runner SP 50cc LC (after 08/2004);Stalker 50cc AC (after 1999);Stalker Naked 50cc;TPH 50cc AC (before 2011);TPH X 50cc AC (before 2011);
- None
- None
- Piaggio
- Free 50cc AC (after 1999);Liberty 50cc i-Get 4T 3V Euro 4;NRG mc2 50cc LC (after 1998);NRG mc2 DD 50cc LC (after 1998);NRG mc2 Extreme 50cc AC;NRG mc2 Extreme 50cc LC;NRG mc3 DD 50cc LC CAT;NRG mc3 DT 50cc AC CAT;NRG Power DD 50 (after 2005);NRG Power DT 50cc AC (after 2005);TPH 50cc AC (before 2010);TPH X 50cc AC (before 2010);Vespa LX 50cc 4-stroke 4V after 09 ZAPC38700;Vespa S 50cc 2-stroke AC;Zip 2 50cc AC 4 stroke as from 2005 (LBMC25C);Zip 2 50cc AC 4-stroke;Zip 2 50cc AC CAT (after 1999);Zip 50cc 4T Euro 4;Zip Base 50cc AC (after 1999);Zip SP2 50cc LC;Zip SSL 25 (after 1999);
- Vespa
- ET2 50cc AC after 2000 ZAPC38100;ET2 50cc AC ZAPC 16000;ET4 50cc AC 4T AC ZAPC26;LX 50cc 4-stroke 2V AC ZAPC38300;LX 50cc 4-stroke 4V AC;LX 50cc AC - 2-stroke;LXV 50cc 2-stroke AC;Primavera 50cc 4T AC 4V after 13 ZAPC53100;S 50cc 2T AC after 07;S 50cc 4T AC 4V after 10 ZAPC38901;S 50cc 4T AC after 08 ZAPC38600;Sprint 50cc 4T AC 4V after 14 ZAPC53101;
