Atlaide 3,80€
P215.0431
Ieplūdes kolektors Polini 360° modulāra 28,5mm / 36° Piaggio / Gilera
Izsūtīšana no Vācijas noliktavas - Pirmdien
Pieejams pasūtīšanai
66,60€ 70,40€
Multiposition Intake Pipe for piaggio / gilera scooter

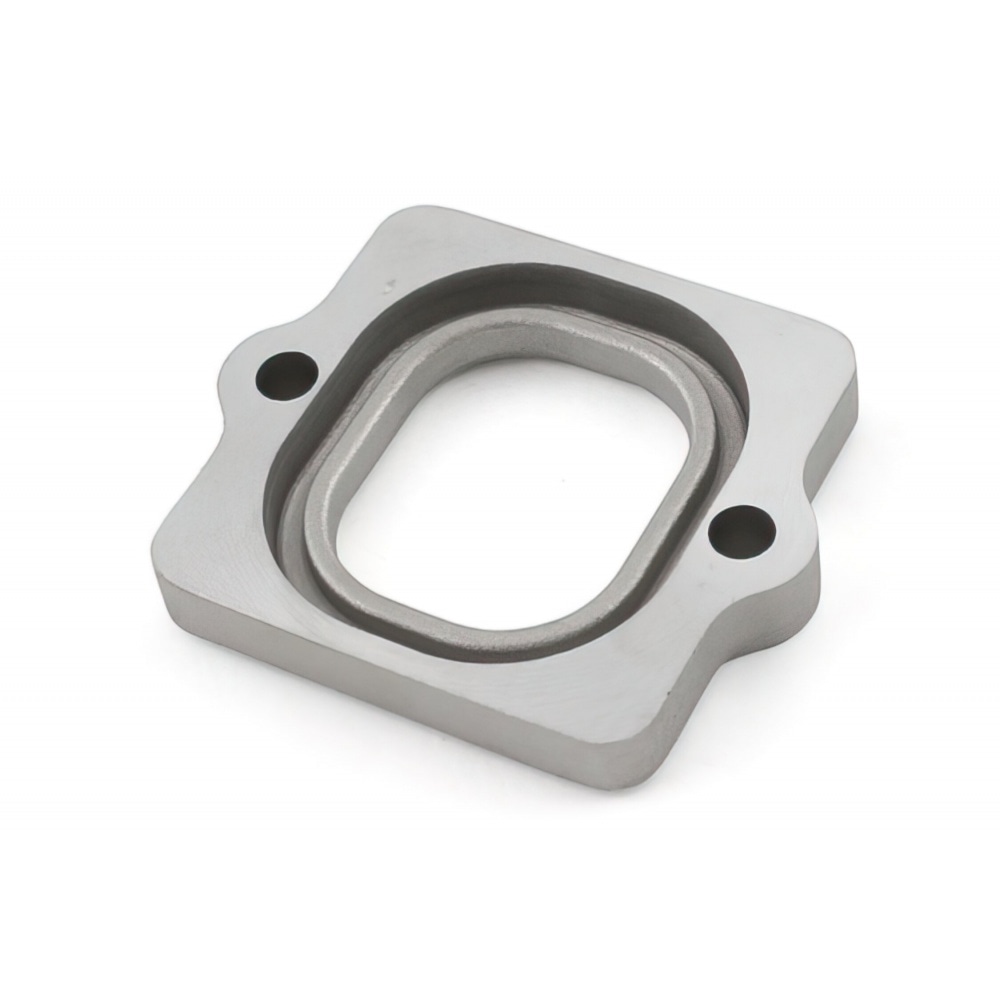

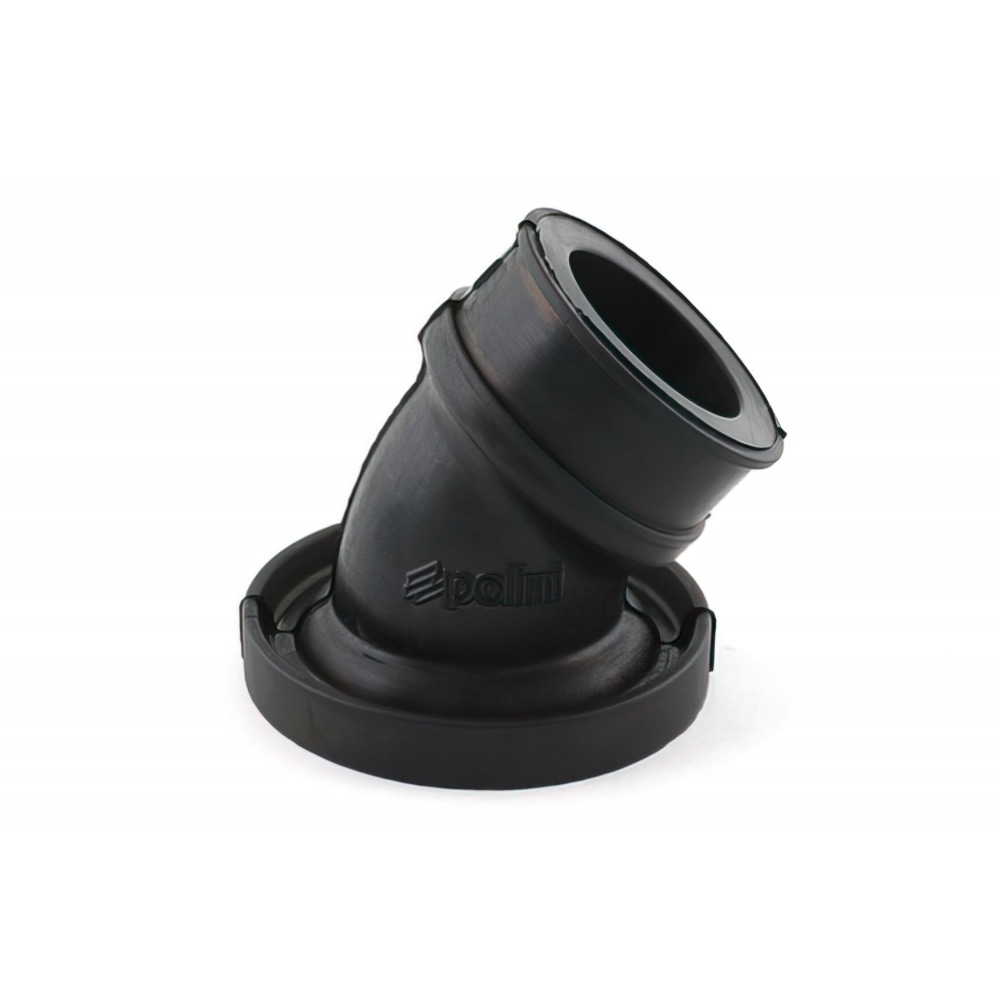

The Polini universal intake nozzle is a high performance component, designed with a CNC machined aluminum base plate and a flexible Viton intake pipe, it offers a unique combination of precision and versatility. Compatible with the vast majority of carburetors on the market, this modular exhaust manifold adapts to various carburetor configurations and types, allowing multiple positions and inclinations thanks to its 360° rotatable design.
Advantages of the Polini racing intake manifold
- Easy installation: The intake rubber is easily inserted into the aluminum base, allowing a safe and reliable connection without the need for an additional gasket.
- Mounting versatility: The individual position of the rubber allows the use of large carburetors in tight spaces, adjusting the connection angle according to the needs of the engine.
- High resistance: Manufactured with top quality materials, the nozzle is sufficiently rigid, avoiding cracking or breakage during assembly. In addition, it is designed to withstand the vibrations of highly prepared racing engines.
- Performance enhancement: Its design provides perfect diffusion and vibration absorption, resulting in a remarkable performance gain.
polini adjustable intake nozzle specifications:

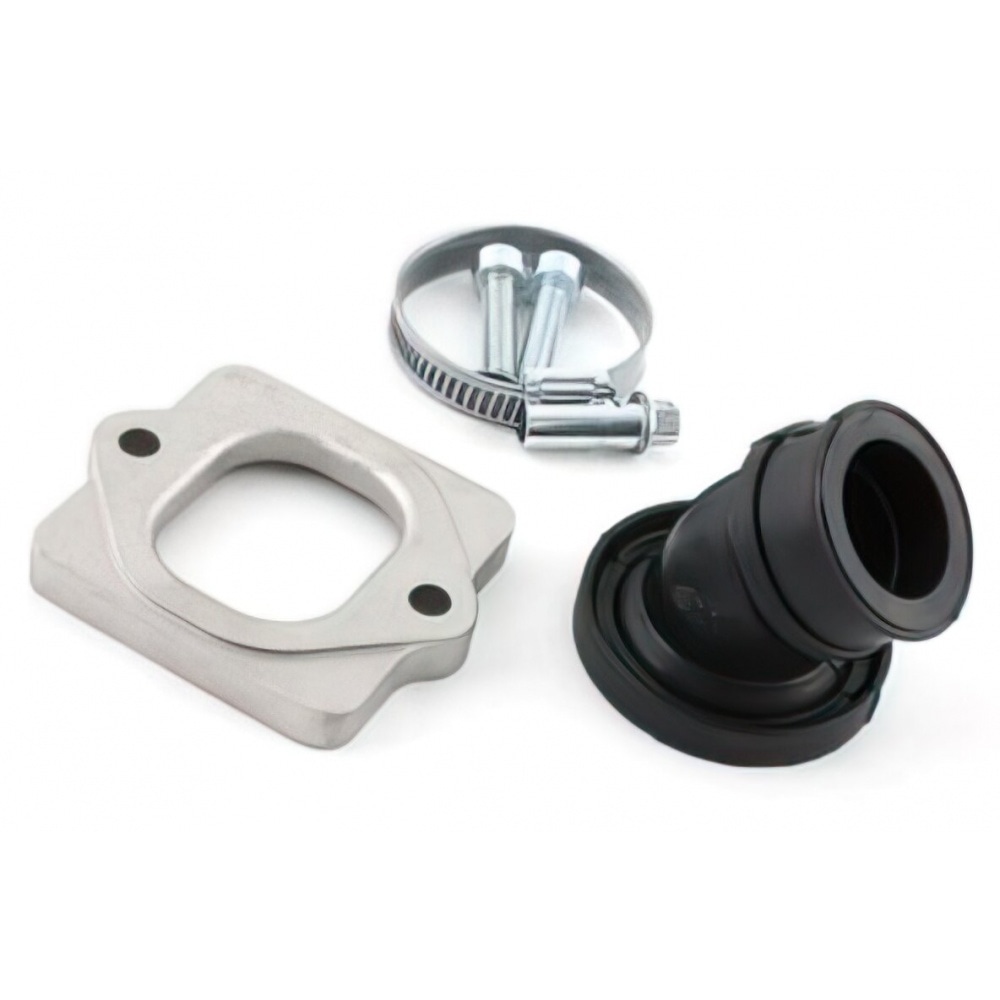

- Includes:1x 2 piece modular intake nozzle
- Fits 50cc and 2T Piaggio and Gilera scooters such as: Piaggio Typhoon, Piaggio Zip, Piaggio NRG, Gilera Runner, Gilera Stalker, Vespa LX, Vespa Primavera, Aprilia Mojito, etc.
- Base lift material: Aluminum
- Intake rubber material: Viton
- Adjustable: 360º.
- Supplied with instructions and mounting screws

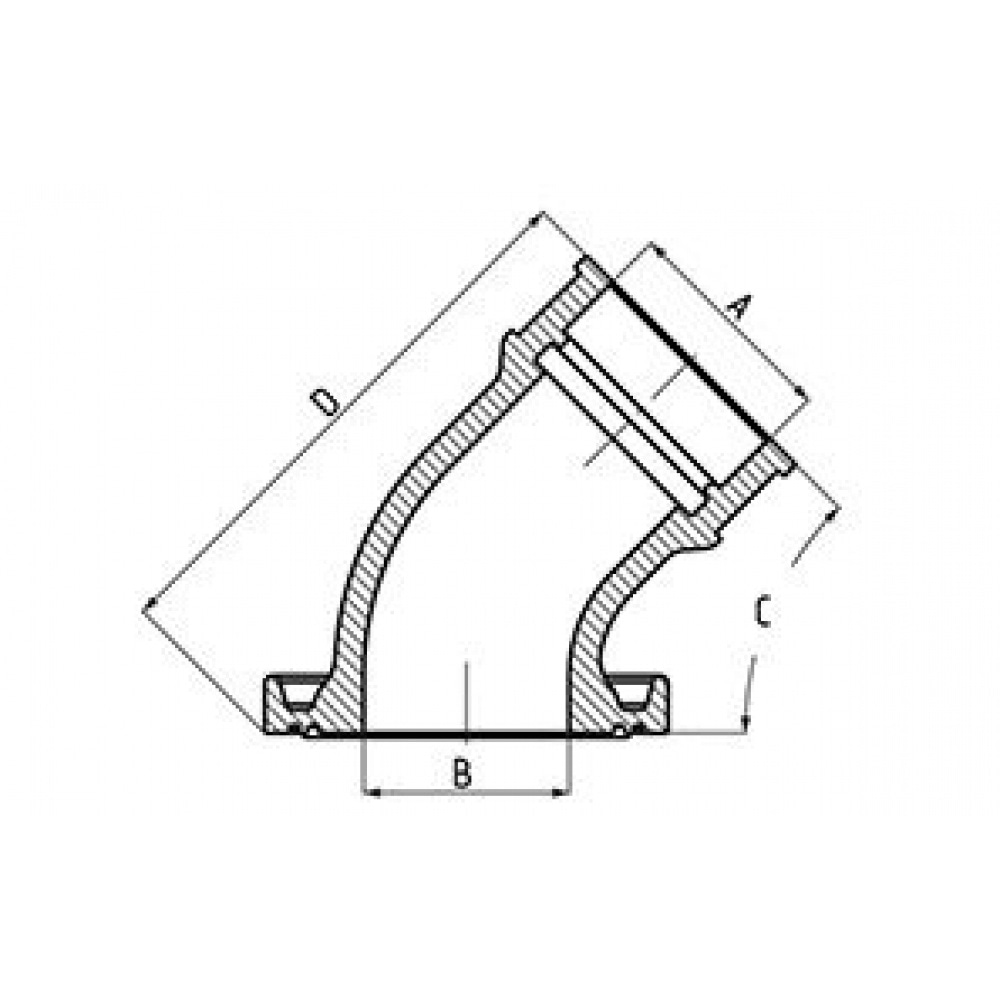

polini evo intake nozzle dimensions:
- Nozzle/carburetor connection (A): 28,5mm
- Inner diameter (B): 24-26mm
- Inclination (C): 36º.
- Length (D): 49mm
- Adaptable to Polini CP 19, Polini CP Evolution 23 and 24, DellOrto PHBH / PHBG 19 carburetors
Polini also offers other dimensions adapted for other carburetors:
- P215.0423
- Nozzle/carburetor connection (A): 25mm
- Inside diameter (B): 21-24mm
- Inclination (C): 58º.
- Length (D): 67mm
- Adaptable to Dell'Orto PHBG 19/21 and Polini CP 15/17,5/19/21 carburetor
- P215.0429
- Nozzle/carburetor connection (A): 33mm
- Inner diameter (B): 30mm
- Tilt (C): 58º Length (D): 75mm
- Length (D): 75mm
- Suitable for DellOrto PHBL 26/28, Mikuni VM / TM 26/28, Keihin 26/28 carburetors
- P215.0424
- Nozzle/carburetor connection (A): 35mm
- Inner diameter (B): 30mm
- Inclination (C): 40º.
- Length (D):57mm
- Suitable for PWK 24/26/28/30, PHBH, VHST 26/28/30 DellOrto carburetors
Tehniskas detaļas
- Article no.
- P215.0431
- Brand
- Polini
- Carburator Type
- Dell'Orto, Polini CP
- Diameter carburetor
- 19mm, 24mm
- EAN
- 8054705070846
- Intake Material
- Rubber
- Manifold connection
- 28,5mm
- Material
- Rubber
- Product type
- Intake manifold
- Selection
- 29mm
- Weight
- 0,15 kg
Transportlīdzeklis
- Aprilia
- Mojito Custom 50cc (Piaggio engine);Scarabeo 50cc AC (2005-2006) (Piaggio engine);Scarabeo Classic 2 stroke Euro 4;Sportcity Street 50cc;SR 50cc Funmaster LC (after 07/2003) - Piaggio engine;SR 50cc LC (after 07/2003) - Piaggio Engine;SR 50cc Racing LC (after 07/2003) - Piaggio Engine;SR 50cc R Factory i.e. LC (after 2005) - Piaggio Engine;SR 50cc R LC (after 2005) - Piaggio Engine;SR 50cc Sport LC (after 07/2003) - Piaggio Engine;SR 50cc Street LC (after 07/2003) - Moteur Piaggio;SR Motard 50cc (after 2011);
- Derbi
- Atlantis 50cc AC (after 06/2002) - Piaggio;Atlantis 50cc LC (after 06/2002) - Piaggio;Boulevard 50cc;Bullet 50cc AC - Piaggio;GP1 50cc LC - Piaggio;GP 1 Open 50cc;GP1 Racing / Revolution 50cc LC - Piaggio;GP 1 Racing 50cc;GP 1 Replica 50cc;GP 1 Revolution 50cc;
- Gilera
- DNA 50cc LC;Easy Moving 50cc AC;Ice 50cc AC;Runner 50cc LC (1999 - 2000);Runner 50cc LC (after 2004);Runner 50cc LC (before 1999);Runner 50cc LC CAT (after 2001);Runner SP 50cc LC (after 08/2004);Stalker 50cc AC (after 1999);Stalker 50cc AC (before 1999);Stalker Naked 50cc;Storm 50cc AC;TPH 50cc AC (before 2011);TPH X 50cc AC (before 2011);
- Italjet
- Jet Set 50cc AC;Torpedo 50cc AC - Piaggio;
- None
- None
- Piaggio
- Diesis 50cc AC;Fly 50cc AC;Free 50cc AC (after 1999);Free 50cc AC (before 1999);Liberty 50cc AC;NRG 50cc LC;NRG mc2 50cc LC (after 1998);NRG mc2 50cc LC (before 1998);NRG mc2 DD 50cc LC (after 1998);NRG mc2 Extreme 50cc AC;NRG mc2 Extreme 50cc LC;NRG mc3 DD 50cc LC CAT;NRG mc3 DT 50cc AC CAT;NRG Power DD 50 (after 2005);NRG Power DT 50cc AC (after 2005);NTT 50cc LC;Quartz 50cc LC;Sfera 1st series 50cc AC (1991 - 1994);Sfera NSL 50cc AC;Sfera RST 50cc AC;Storm 50cc AC;TPH 50cc AC (after 2010);TPH 50cc AC (before 2010);TPH X 50cc AC (before 2010);Vespa S 50cc 2-stroke AC;Zip 1st series 50cc AC (1991 - 1994);Zip 2 50cc AC CAT (after 1999);Zip Base 50cc AC (after 1999);Zip Base 50cc AC (before 1999);Zip FastRider 50cc AC;Zip RST 50cc AC (1996-2000);Zip SP1 50cc LC;Zip SP2 50cc LC;Zip SSL 25 (after 1999);Zip SSL 25 (before 1999);
- Vespa
- ET2 50cc AC after 2000 ZAPC38100;ET2 50cc AC ZAPC 16000;LX 50cc AC - 2-stroke;LXV 50cc 2-stroke AC;Primavera 50cc 2T AC after 13;S 50cc 2T AC after 07;Sprint 50cc 2T AC after 14;
