Cylinder d.45mm Parmakit Superterm Lamellare 70 Zündapp KS 50 with intake

70cc aluminum cylinder PARMAKIT Supertherm with intake kit for Zündapp

The PARMAKIT 70cc Superterm cylinder kit (without cylinder head) is one of the most powerful 70cc kits for Zündapp CS 50 / KS 50 / GTS 50 / CX 50. Massive power increase plus optimum cooling thanks to oversized cooling fins, ideal for riders who value both maximum performance and reliability. The Superterm is clearly the first choice for moto racing and tuning projects.

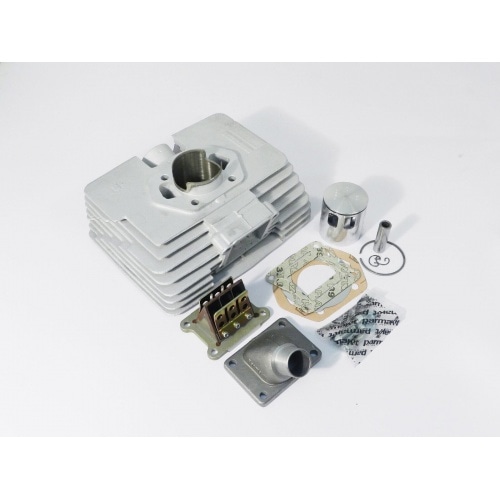

The Superterm is supplied here as a complete kit with 20 x 24 mm intake manifold and reed valve.

Note: Without cylinder head. The original head can still be used.

Parmakit aluminum cylinder - top quality and outstanding workmanship

The highlight of the Superterm is of course the large cooling fins, which ensure optimum cooling even during intensive racing.

The cylinder is made of high-quality aluminium and has very large, optimized transfer ports for improved cylinder filling and cooling and a large outlet for optimized exhaust gas routing.

The cylinder is equipped with a special tuning piston, with a domed piston crown for better pre-compression and lateral grease nipples / openings for better lubrication.

To exploit the full potential of this kit, we recommend a larger carburetor and tuning exhaust.

Technical details Parmakit superterm 70 cylinder

• Cylinder: aluminum with Nikasil coating, bore 45mm
• Displacement: 70cc
• Piston: 1-ring piston with chrome-plated piston ring and 12mm piston pin
• Reed valve: Tuning reed valve with 6 carbonite blades 0.3mm
• Intake manifold: Metal, 20 x 24 mm (for Dellorto carburetor)
• Gaskets and screws
• Compatibility: Zündapp CS50 / KS50
• Without cylinder head
