Tuning Kit 96 Italkit Derbi Euro 3 / Euro 4

Italkit tuning kit with 96cc cylinder + long stroke crankshaft

For engines WITH / WITHOUT balancer shaft

The Italkit Racing Kit 96cc was developed for Derbi Euro 3 / Euro 4 engines and is ideal for use on the race track. The high-end kit combines precision, performance and durability and offers state-of-the-art technical features.

Buying a kit ensures that the components are perfectly matched and also saves money compared to buying the parts individually.

features Italkit motorpack derbi euro 3:

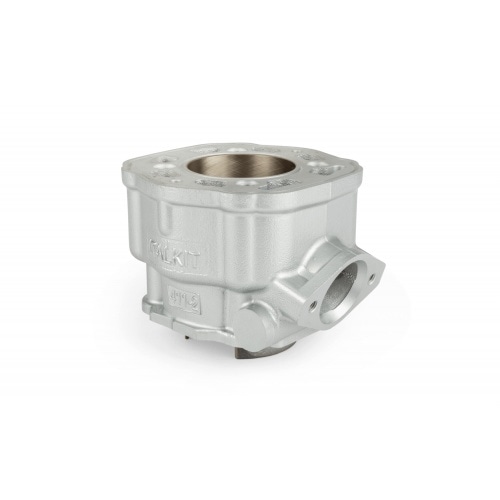

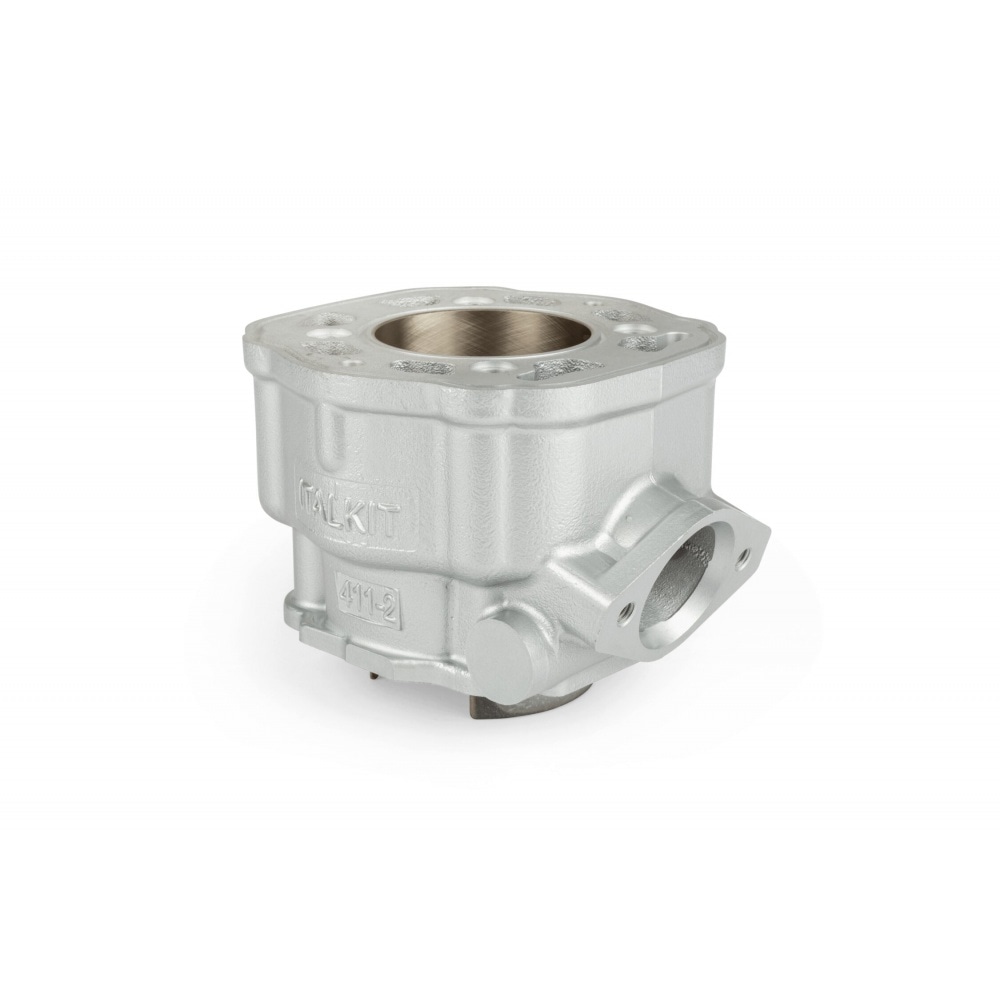

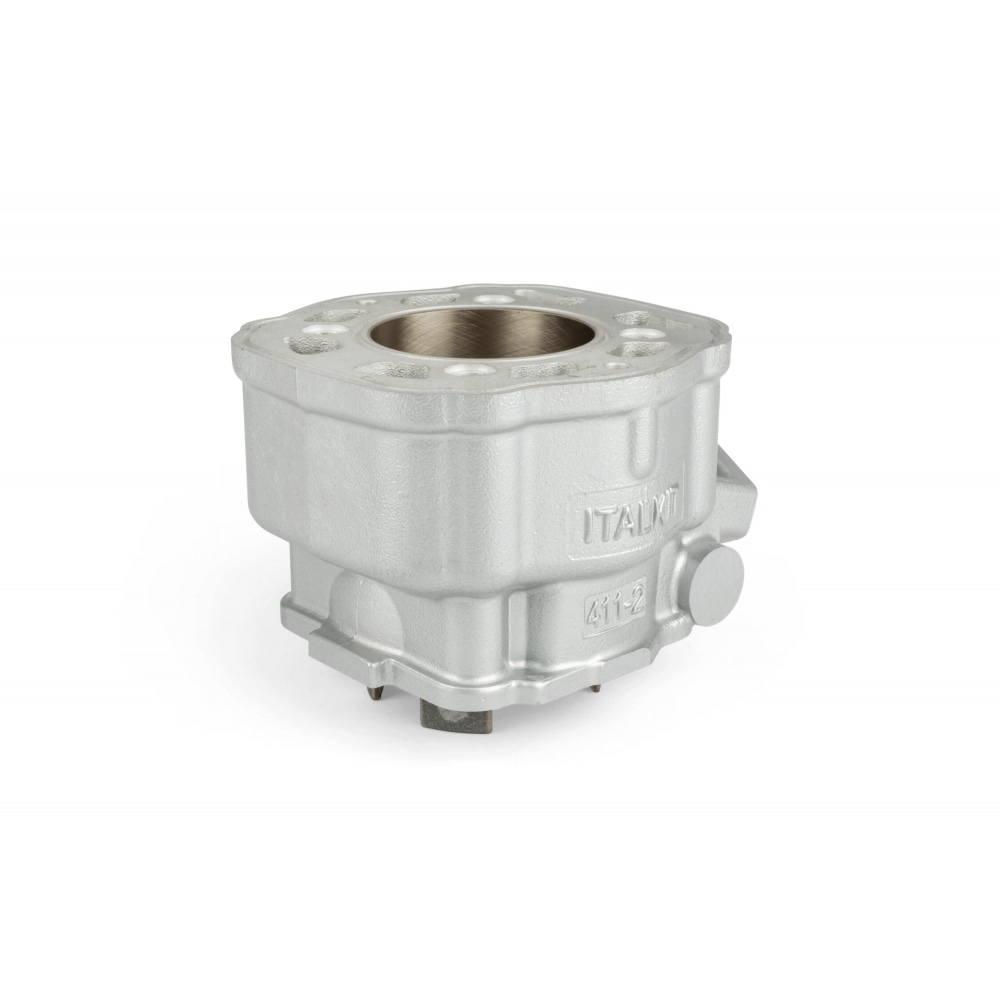

Cylinder 96 alu derbi:

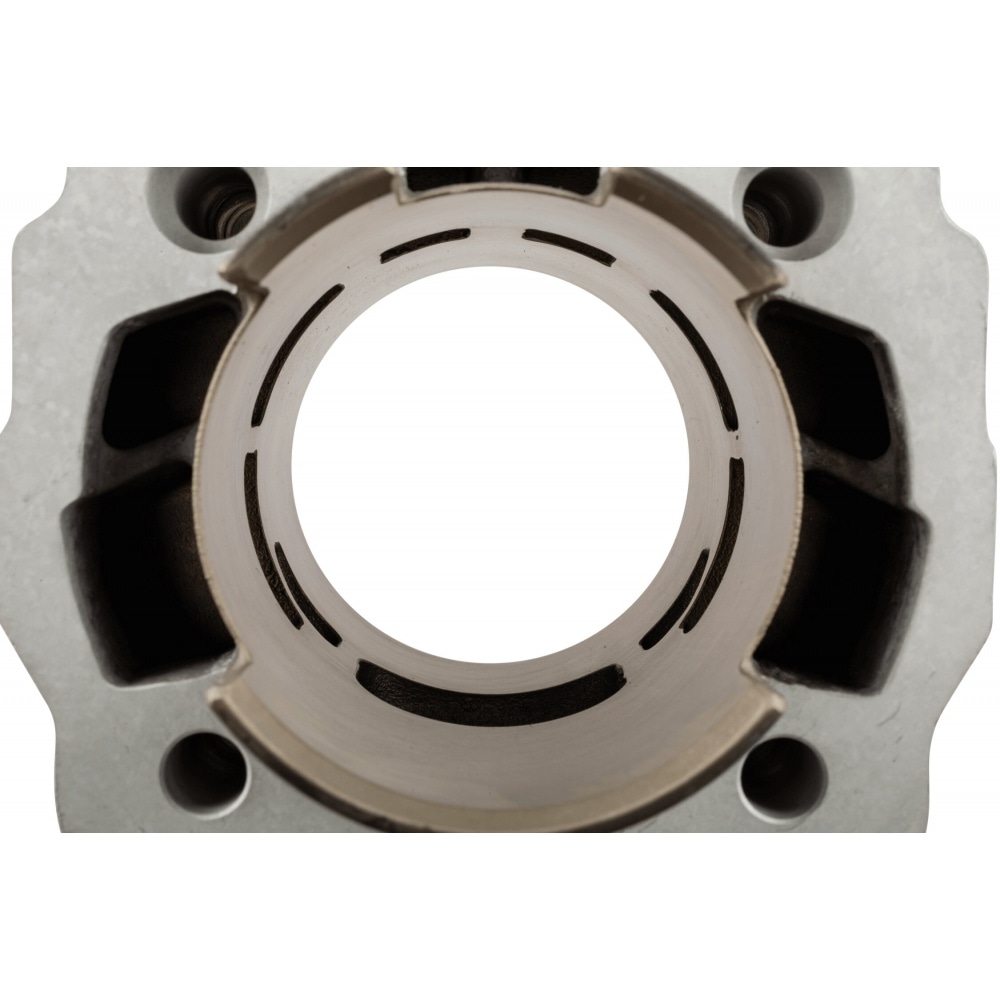

Aluzylinder 96cc with nickel/silicon oxide coating, with 6 transfer ports and large 30mm outlet. Also included: cylinder head with high compression and optimized cooling and a 52mm graphite piston Ø52mm with 1mm chrome-plated piston ring.

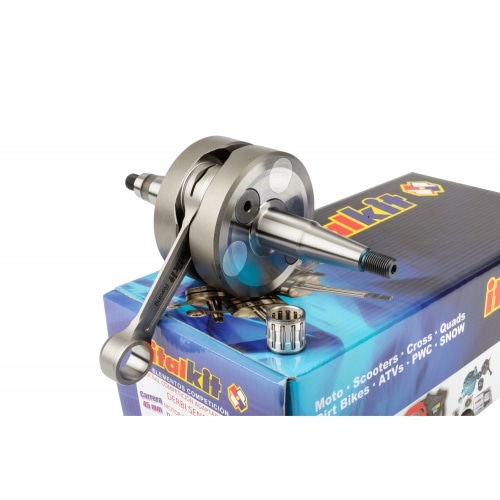

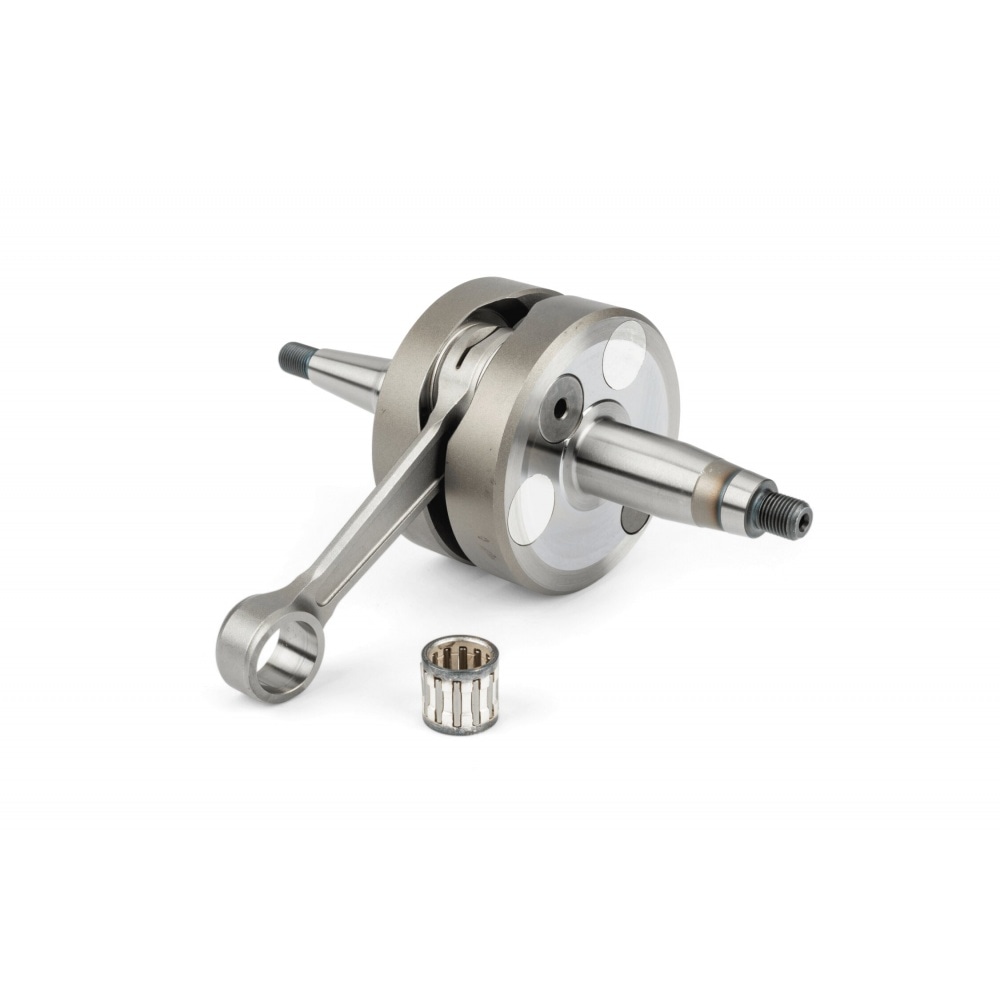

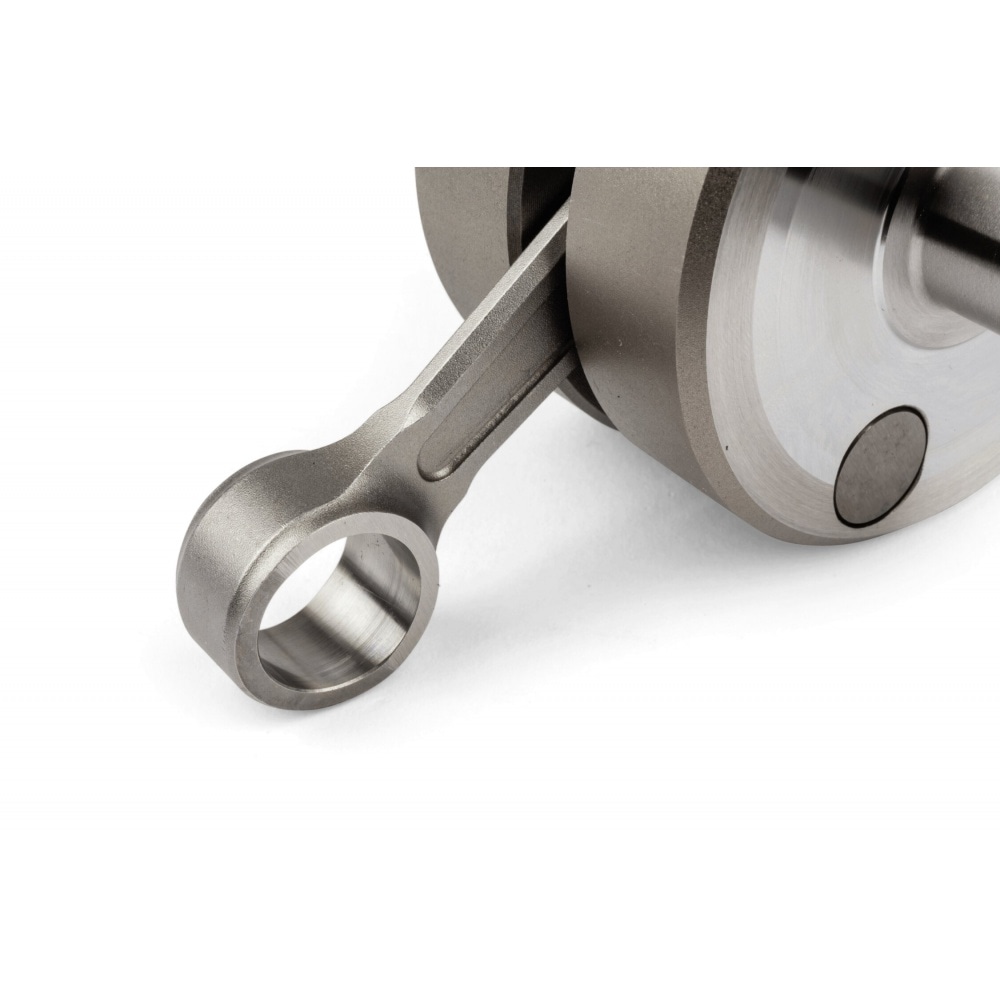

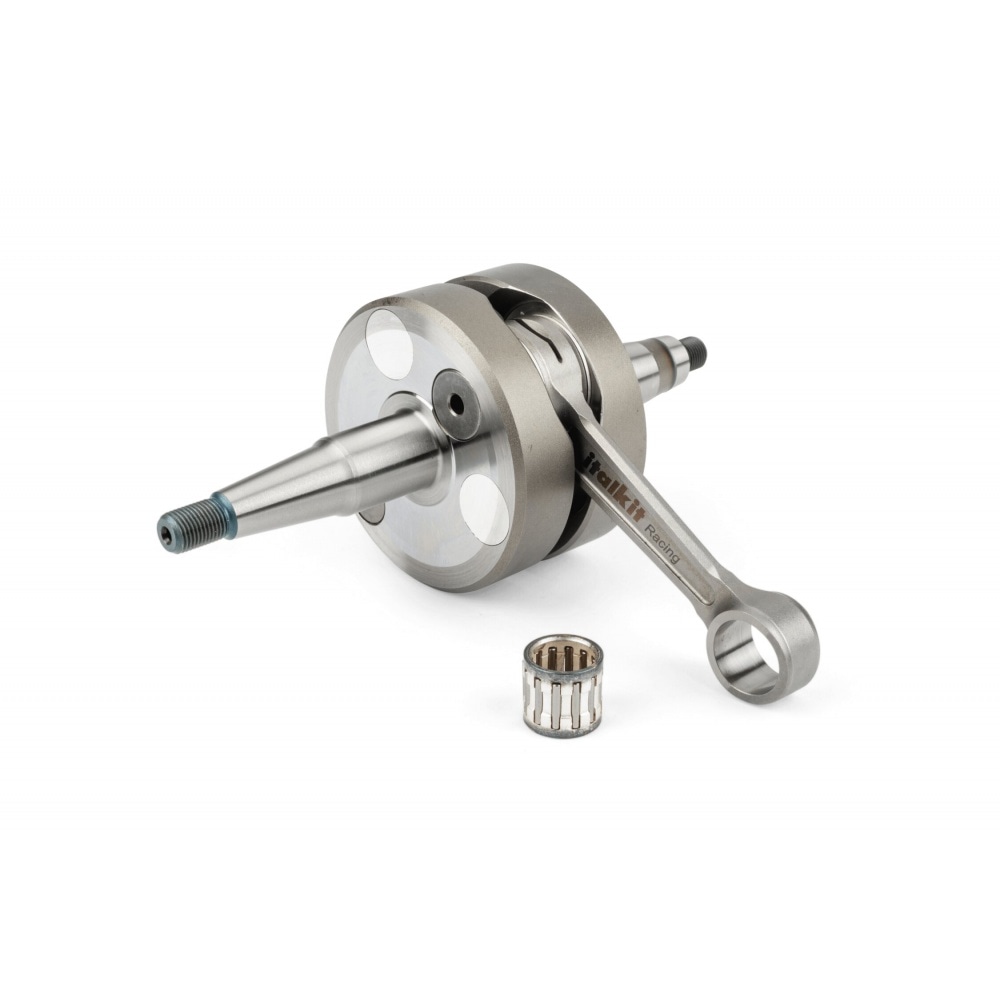

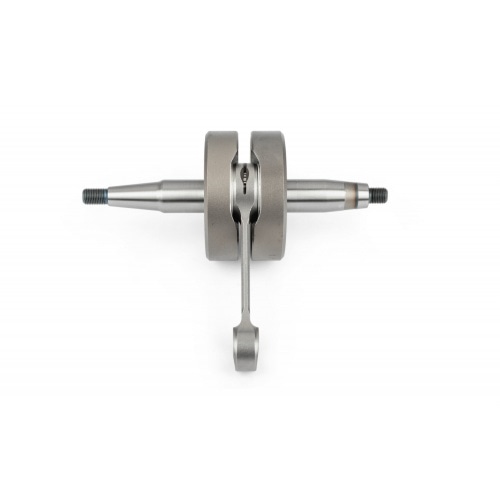

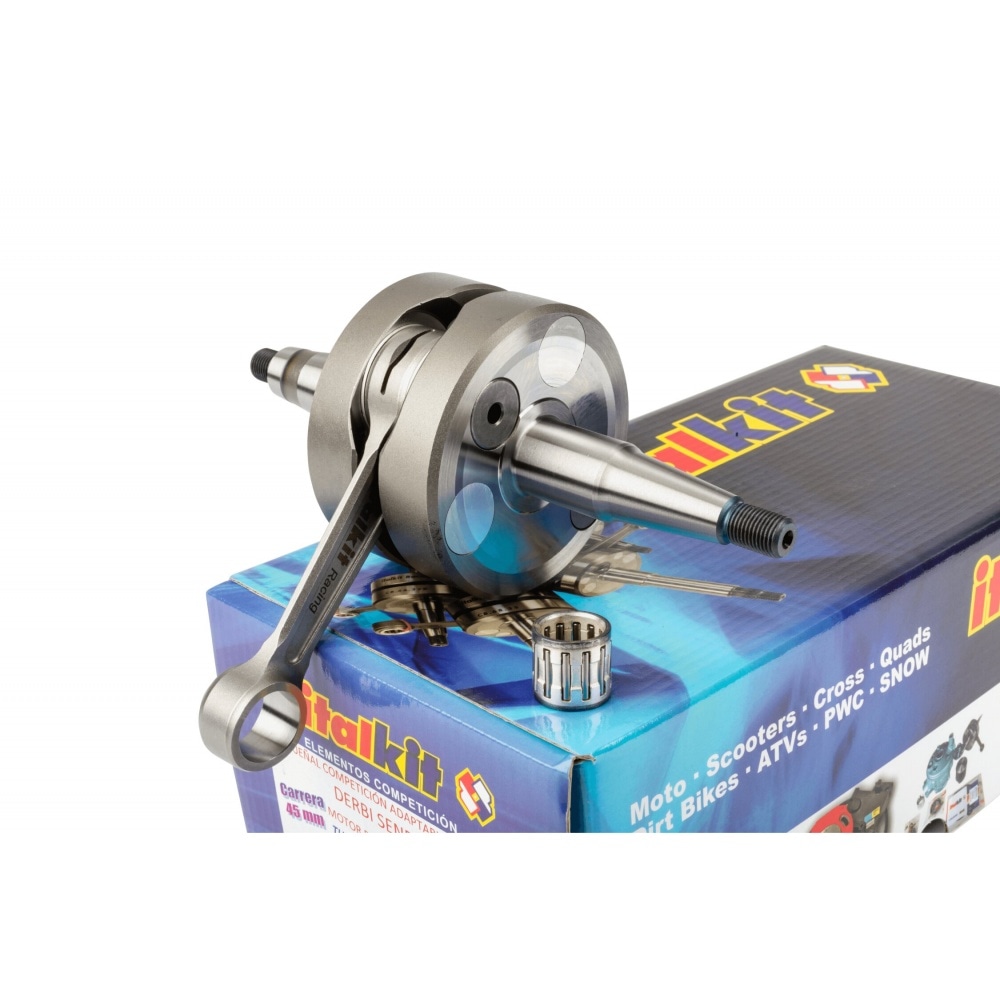

racing crankshaft with 45 mm stroke:

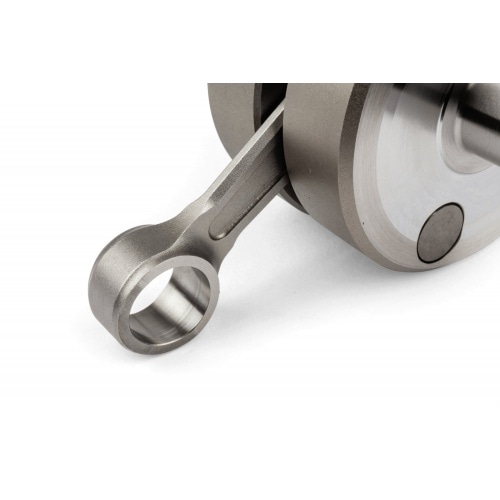

The long-stroke crankshaft (44.90 mm) is made of high-quality steel, with a reinforced 90mm connecting rod. It can withstand up to 16,000 revolutions per minute and offers an actual displacement of 95.35 cc thanks to the long stroke. The racing shaft is characterized by a particularly low weight and maximum durability.

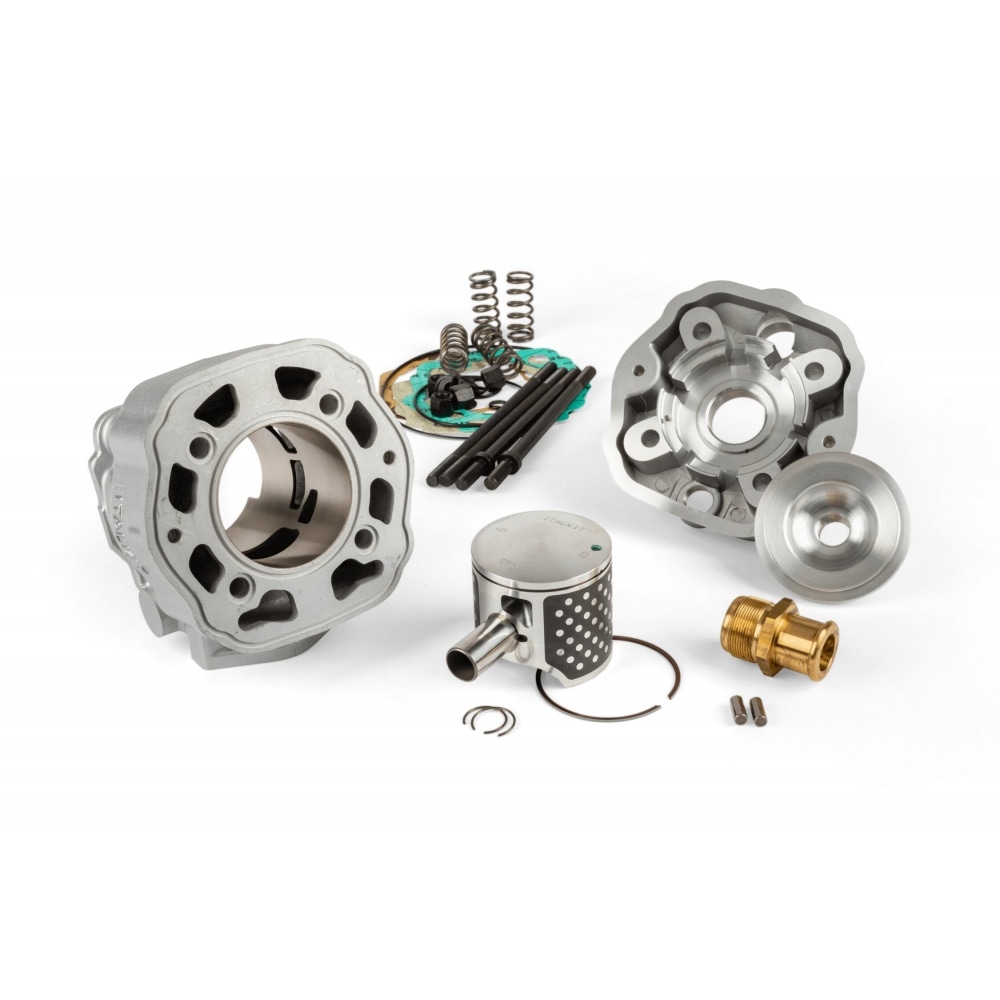

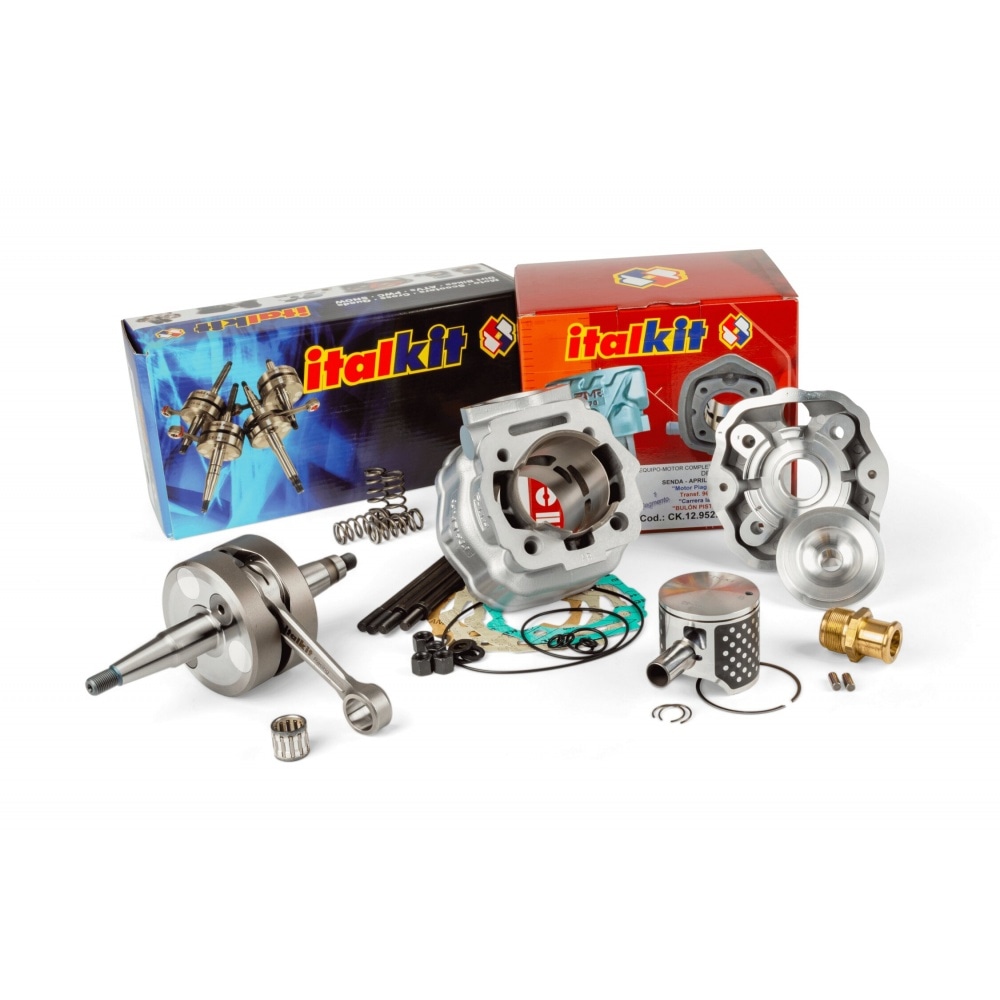

italkit tuning kit components:

• Aluminum cylinder 96cc, Ø52mm with 6 transfer ports and large exhaust

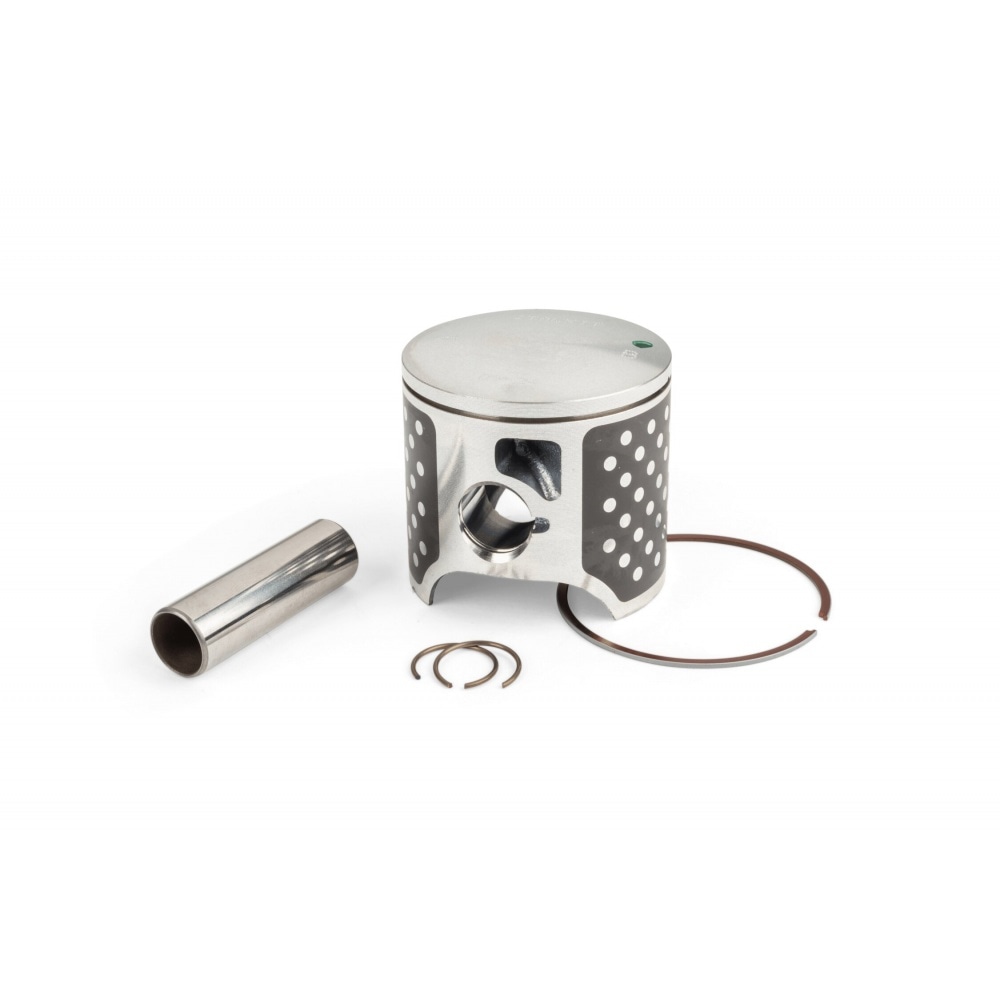

• 1-ring graphite piston Ø52mm with reinforced 14mm piston pin and circlips

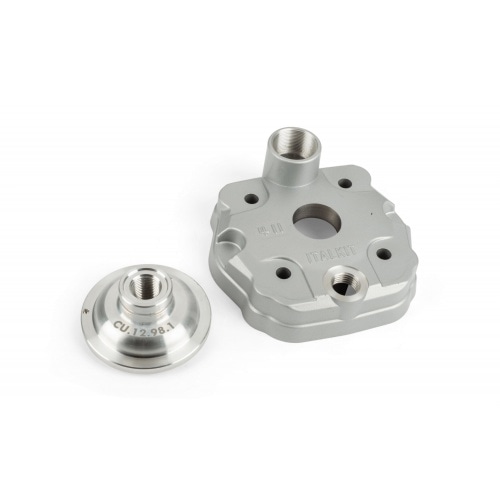

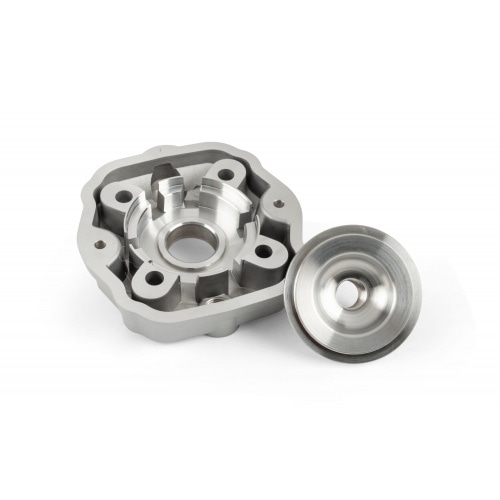

• Modular aluminum cylinder head with high compression and reinforced studs

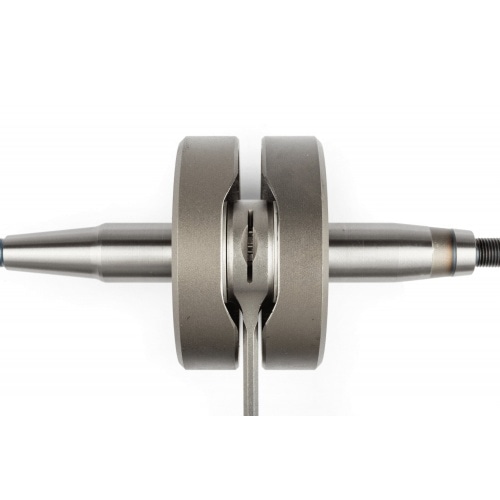

• Crankshaft with long stroke (44.90mm) and 90mm connecting rod

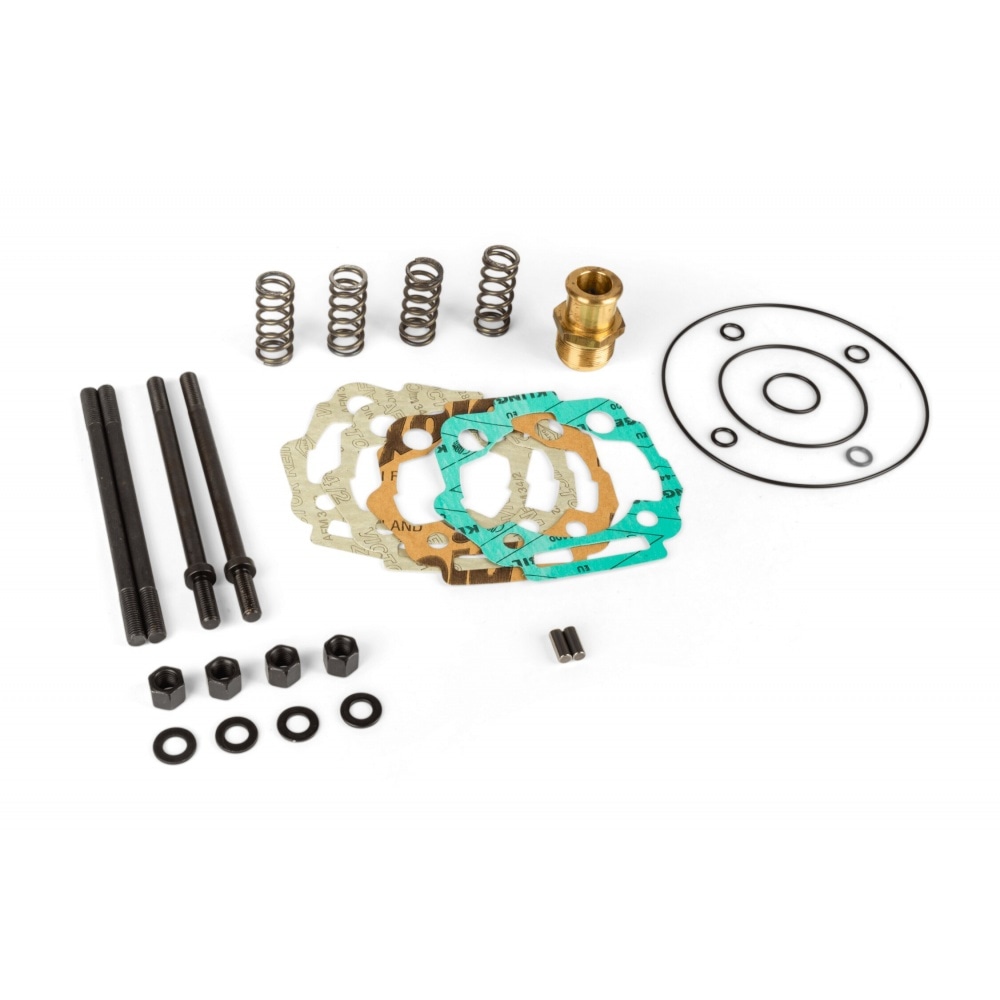

• Gasket set

Setup recommendations for performance optimization

For maximum performance and to achieve up to 25 hp, this pack should be combined with a 26 to 28 mm carburetor, a suitable intake, a Selettra Italkit ignition with variable ignition timing, a large-volume racing exhaust and racing oil. The crankcase must be milled to make room for the cylinder / crankshaft.

Note: Not approved for road use
