Tuning Kit cylinder - crankshaft - exhaust Stage6 R/T 70 Minarelli horizontal

Minarelli engine pack: Stage6 R/T 70cc cylinder, exhaust and HQ crankshaft

For fans of Stage6: Stage6 R/T tuning kit with cylinder, crankshaft and exhaust for 50cc scooters such as Yamaha Aerox, Aprilia SR (Minarelli engine), Yamaha Jog RR, Malaguti F12 LC and many others.

The kit contains the following components:

• 1x cylinder kit Stage6 R/T 70
• 1x crankshaft Stage6 HPC MK2
• 1x exhaust Stage6 R/T 70 - 80 black / orange

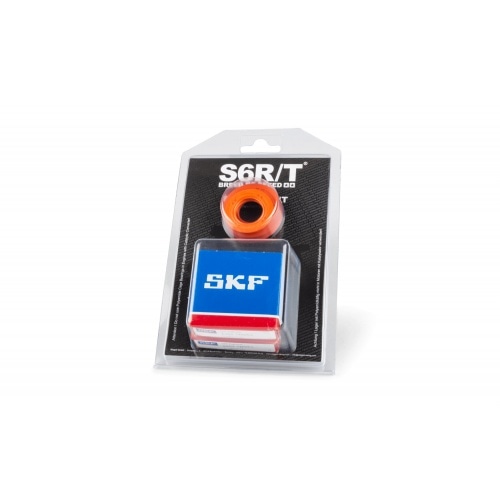

• 1x crankshaft bearing and oil seals Stage6 R/T

Stage6 R/T 70cc cylinder

The Stage6 R/T 70cc cylinder is a nikasil-coated aluminum cylinder with six transfer ports and split exhaust. It is supplied with a 47.6 mm piston, two-piece HC cylinder head and adapter plate for the external studs.

The CNC-machined adapter plate is screwed onto the engine housing and holds the cylinder via external stud bolts. This eliminates the need for continuous stud bolts, which in turn clears the way for further performance-enhancing modifications to the exhaust and transfer ports. The thermic properties are excellent - the combustion chamber insert is bolted to the cylinder at five points, each bolt is cooled by its own cooling pocket. The critical areas at the stud bolts are thus stabilized and the risk of piston seizure is minimized.

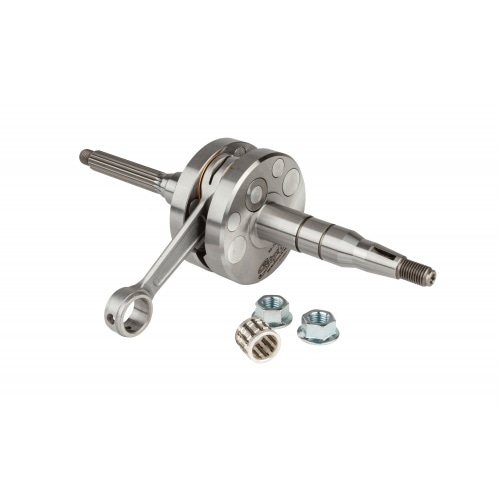

Reinforced Stage6 R/T crankshaft

The tuning crankshaft features precision manufacturing and adherence to exacting tolerances. The forged, CNC-machined connecting rod is extremely resistant and ensures maximum strength when used in racing engines, at the same time its design optimizes flow dynamics for enhanced performance. The very precise balancing via lightweight metal inserts mitigates strong vibrations and ensures smooth running. The top-of-the-line crankshaft comes with a top quality small end bearing.

racing exhaust Stage6 R/T 70

The exhaust is made of 0.8mm sheet metal. The expansion chamber is composed of several hand-welded cones, making for amazing performance AND a stunning look. The carbon silencer silencer with CNC-milled end caps is mounted with springs, the exhaust bracket with "silentbloc" rubber buffers adds a great finishing touch. Shape and volume have been specially designed to match the Stage6 R/T 70cc cylinders, the two tuning parts combined will get you a considerable increase in performance.

even more power for Minarelli scooters

To improve the Minarelli horizontal engine package even further and make optimum use of the power of the Stage6 R/T and achieve a full 22 hp, we also recommend

• Stage6 R/T Oversize CVT
• Stage6 Torque Control clutch
• Stage6 R/T 28mm intake manifold
• Stage6 R/T internal rotor ignition
• Racing gearbox

Attention: The crankcase must be milled to accommodate the cylinder base for the installation of this engine kit.
