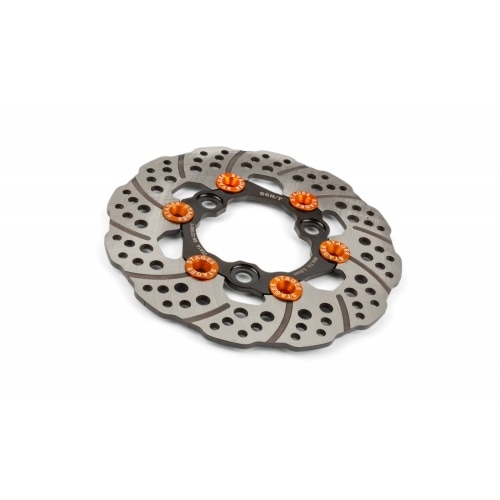

Brake Disc floating 190mm Stage6 R/T MK2 Yamaha Aerox

Racing brake disc Aerox from Stage6 R/T

Floating brake disk 190mm Stage6 R/T MK2 Minarelli, high-end brake disk, which is clearly built for racing, but can of course also be used on the road.

The brake disc is 100% made in Italy and has been tested under real conditions on the race track. It is completely made of high-quality martensitic steel. This type of steel has a high carbon and chromium content, the main advantage is its superior toughness and hardness, which guarantees an extended service life.

The heat treatment of the braking surface is the same as that used on superbikes, so when competing in circuit races pilots can brake consistently and powerfully throughout the entire race.

This model is floating, which of course looks pretty cool, but also has various advantages. With floating brake discs, the braking force is distributed about 30% more evenly than with normal discs, which results in better brake response and more even brake pad wear. The brake disc is fitted with orange anodized floaters made of 7075 T6 aluminium, whose strength is comparable to steel, but weighs much less.

This disc can also be used as a floating rear brake disc for Yamaha Aerox. For this purpose, we recommend combining it with the Stage6 R/T rear hub, which, unlike the original hub, fits directly without the need for any adjustments.

Advantages of the Stage6 brake disk front - rear:

• Increased and constant braking performance even under extreme conditions
• Excellent heat distribution and limited expansion and warping at high temperatures
• Less wear on the brake pads
• Better handling and more grip when braking in corners

For optimum performance, we recommend fitting a new pair of brake pads when mounting your new Stage6 disc.

Technical data S6 R/T Floating Disk:

• Outer diameter: 190 mm
• Inner diameter: 58.5 mm
• Mounting: 3 holes
• Diameter of the holes: 10.5 mm
• Thickness: 4 mm
• Position: Front or rear (with modification or Stage6 hub)
• Compatible with Yamaha Aerox, Jog R, Malaguti F12, Aprilia SR50 and many other scooters

Note : For brake discs measuring 190mm outside / 58mm inside with 3 holes, there are 3 different types with different screws:

- 10mm flat head screw
- 8mm flat head screw
- 8mm countersunk screw

Stage6 designed this disc so that it can be used for all 3 versions. If your vehicle uses 10mm screws (Yamaha Aerox...), you can use the original screws and do a plug & play installation. Using the special screws supplied with the disc, you can also fit it on all models with 8mm screws (Aprilia SR50, Piaggio NRG, Typhoon, Malaguti F12, F15, MBK Mach G, Yamaha Jog and etc.).
