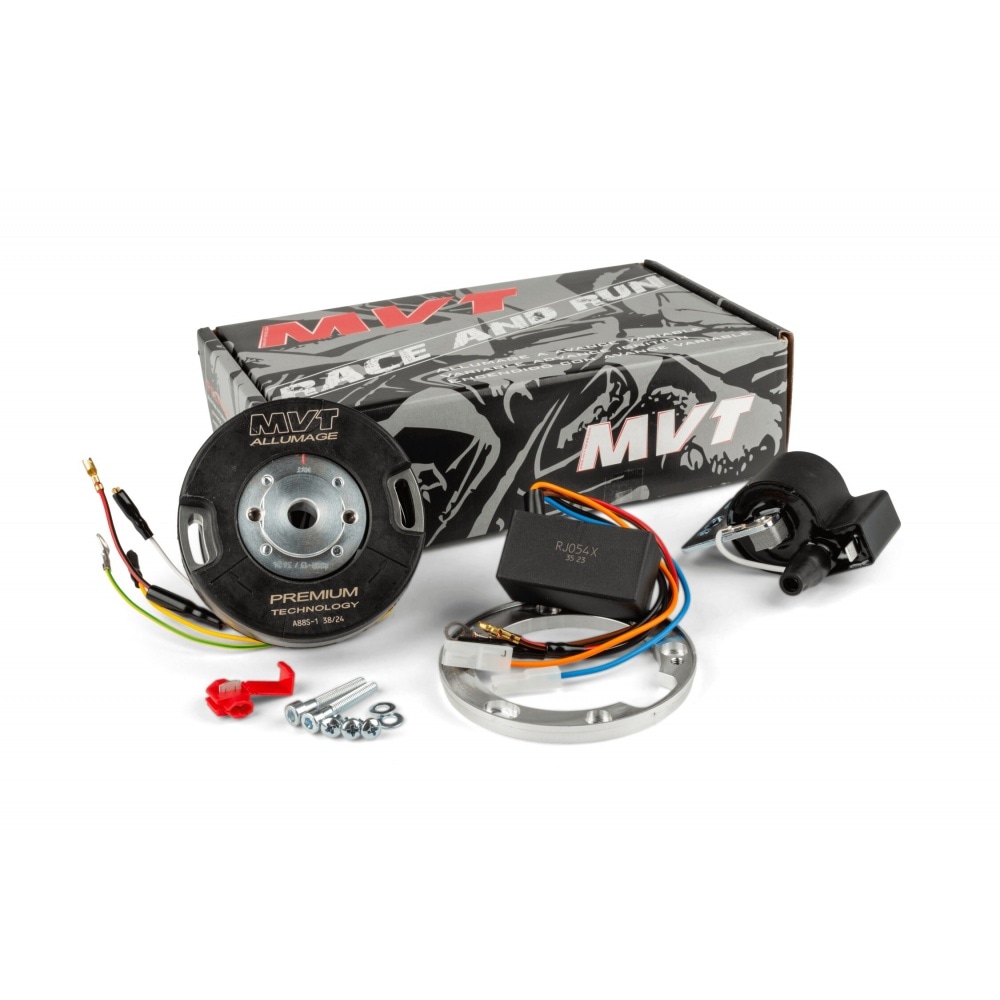

Ignition MVT Premium Original AM6 with battery

MVT Premium with rpm limiter AM6 with battery

The MVT Premium internal rotor ignition with light and rpm restriction for Minarelli AM6 after 2003 is a good alternative if you want to replace the original ignition with a more powerful ignition while retaining the 12V power supply for the vehicle lighting and the original speed limiter.

Advantages of MVT Premium ignition

• Simple adjustment (without micrometer; the ignition is set to 0 before TDC by aligning the two markings exactly to TDC)
• For everyday road use
• With 12V power supply
• With rev limiter for optional restriction to 45 km/h
• Stronger speed increase thanks to the lighter rotor

We also offer a similar model, the MVT Premium without limiter.

Optional: The performance can be further optimized with the digital MVT EPROM.

WARNING: A 12-volt battery is required for the MVT ignition to work. We recommend a SLA4L-BS 12V - 5Ah battery. For AM6 without battery: MVT-PREM33.

Details mvt Premium ignition AM6:

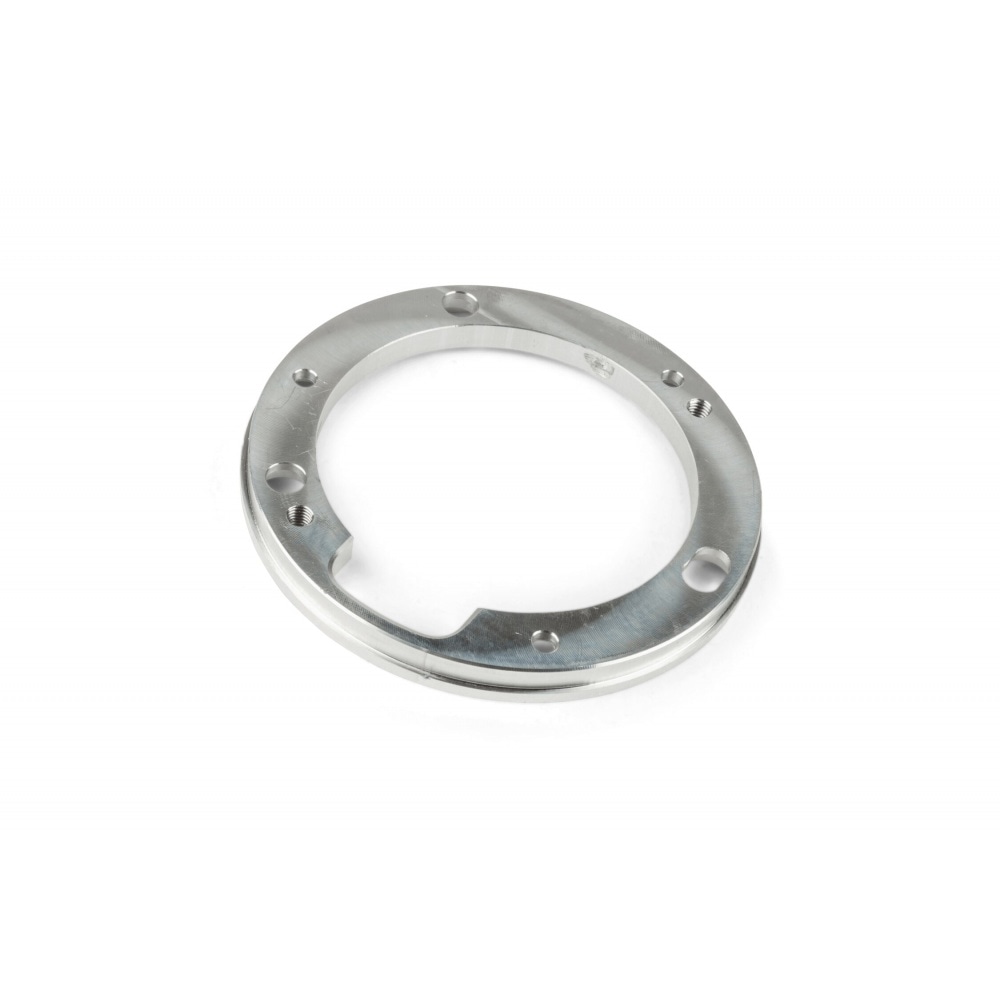

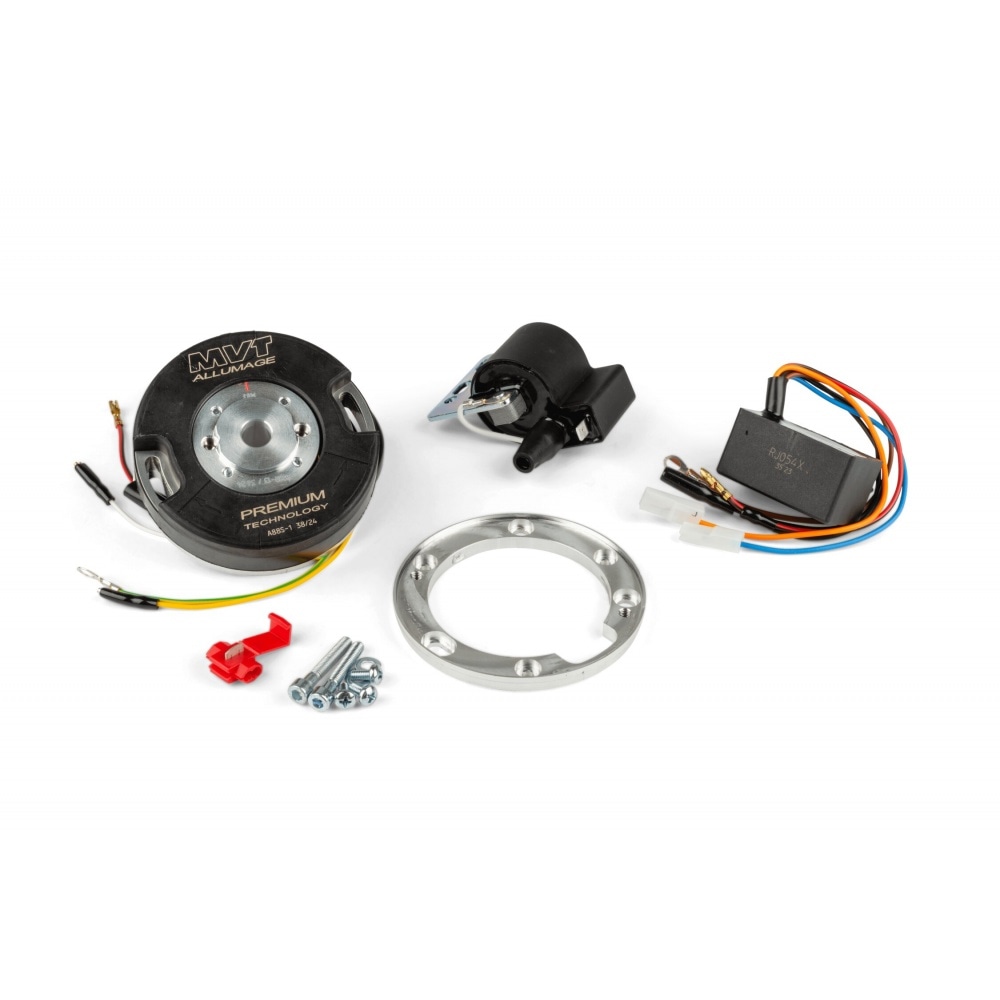

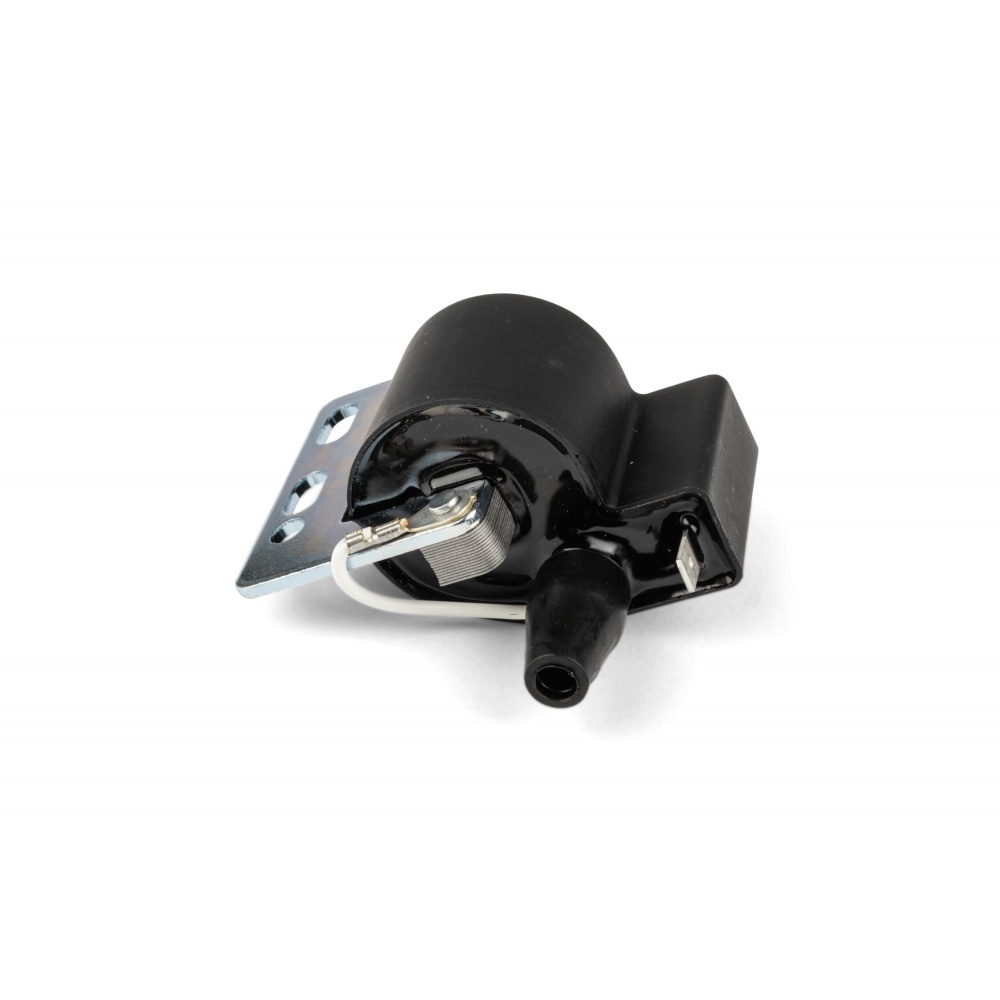

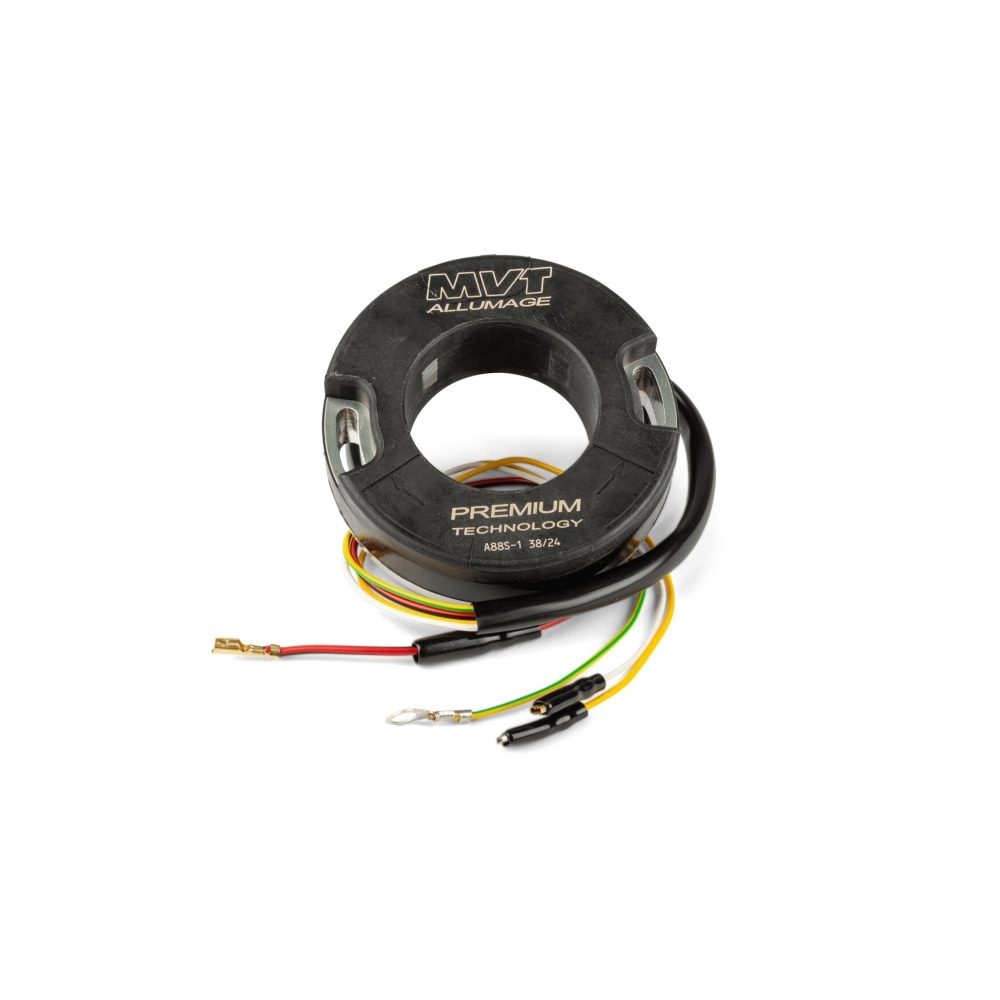

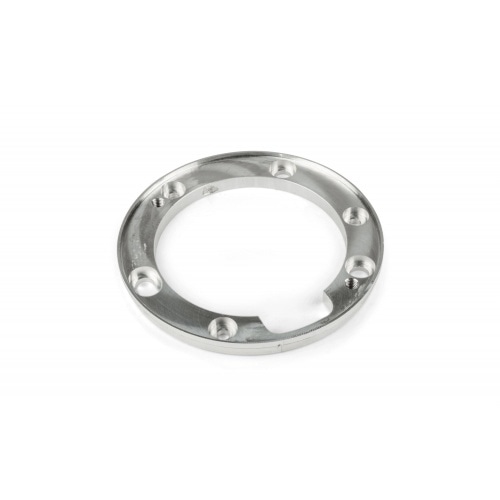

• Scope of delivery MVT Premium: inner rotor, stator, base plate, HT coil, hardware kit, installation instructions
• Model: PREM35
• Power: 55w
• Discharge voltage: 42Kv
• Speed limit: 22,000 RPM
• Operating range: 7,000 - 15,000 RPM

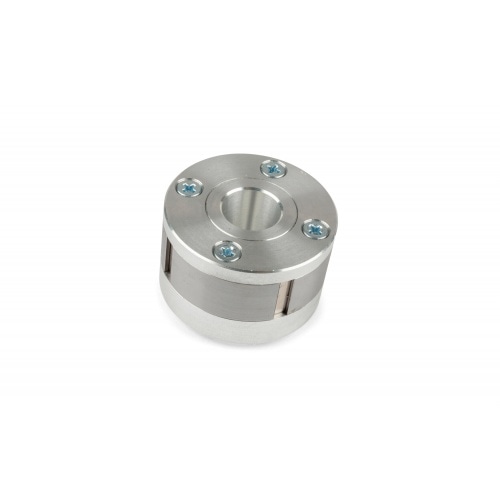

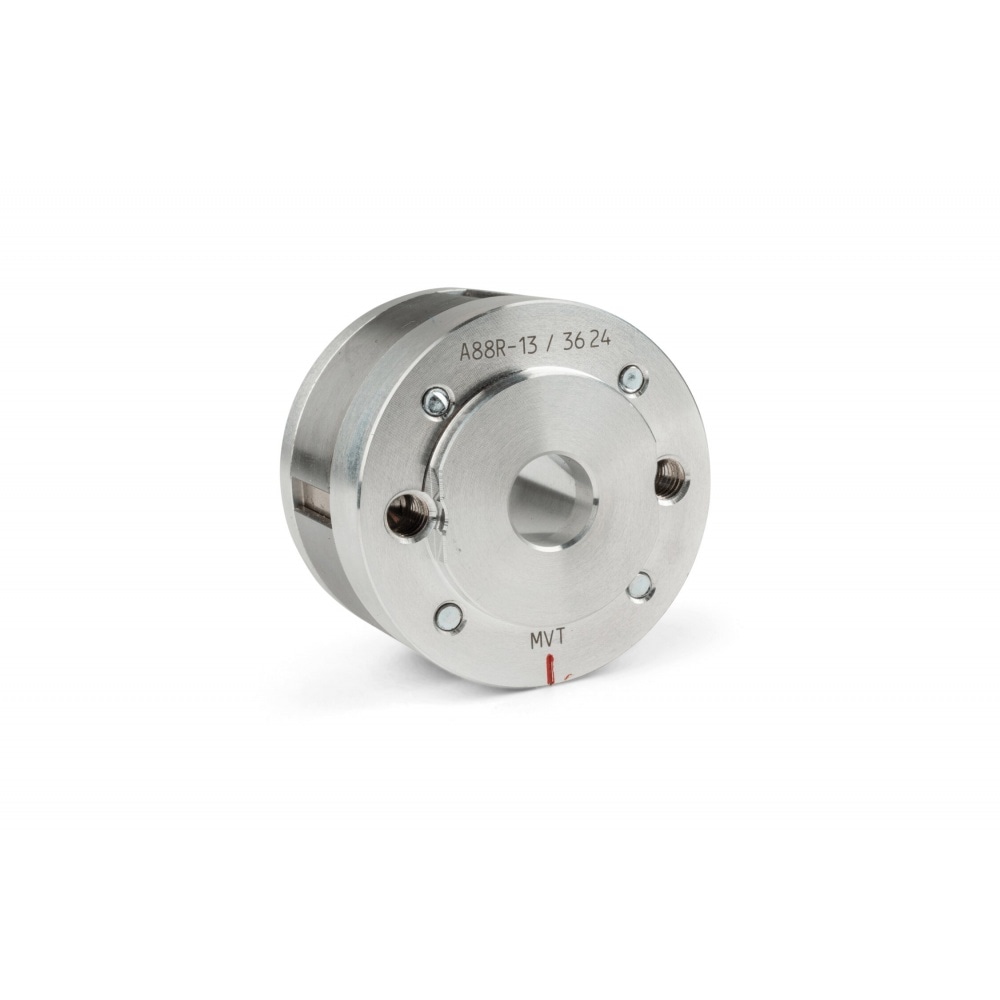

• Weight of inner rotor: 250g

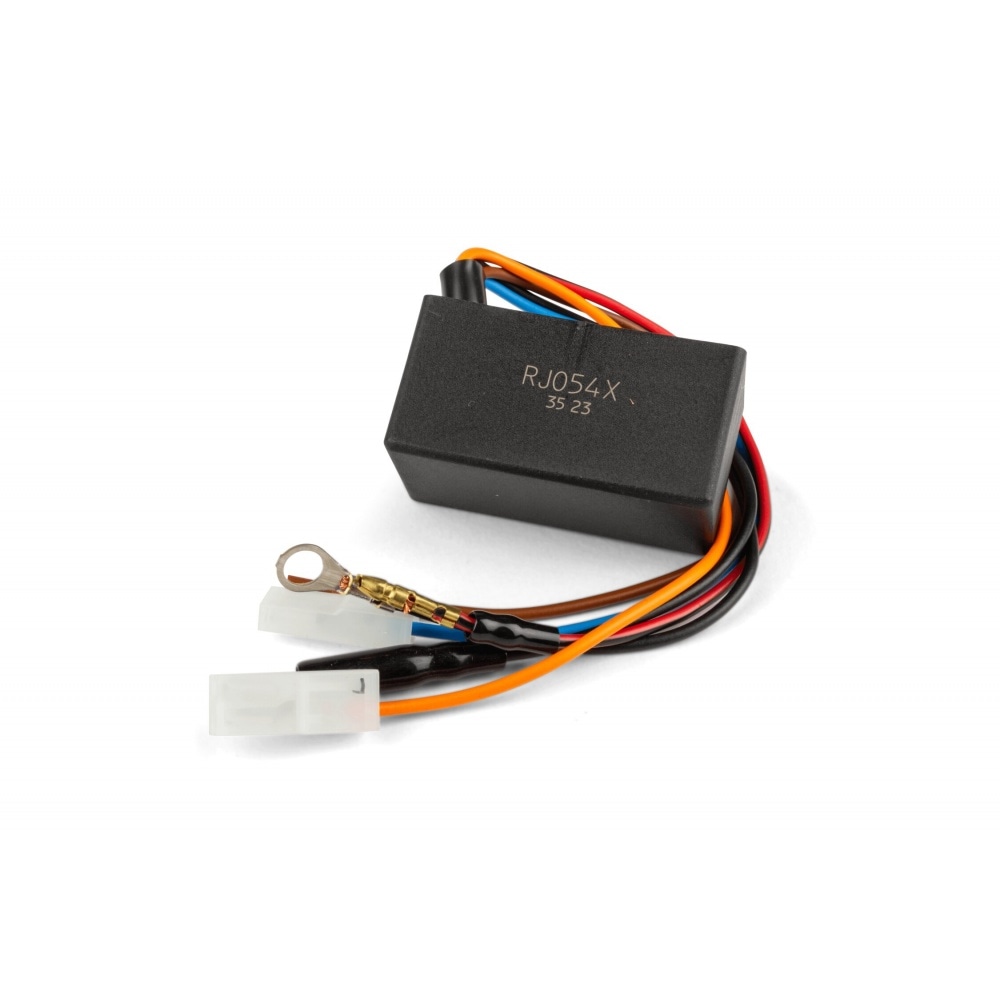

• Ignition timing with MVT CDI: RJ51X/RJ54X (TDC)
• Ignition timing adjustment with MVT Eprom 1,2,3,3,4,5: 2.9mm before TDC (top dead center)
• Compatibility: Minarelli AM6 from 2003 like MBK X-Limit Enduro/SM 50, MBK X-Power 50 (after 2003) / Yamaha DTR/DTX/TZR 50 (after 2003)
