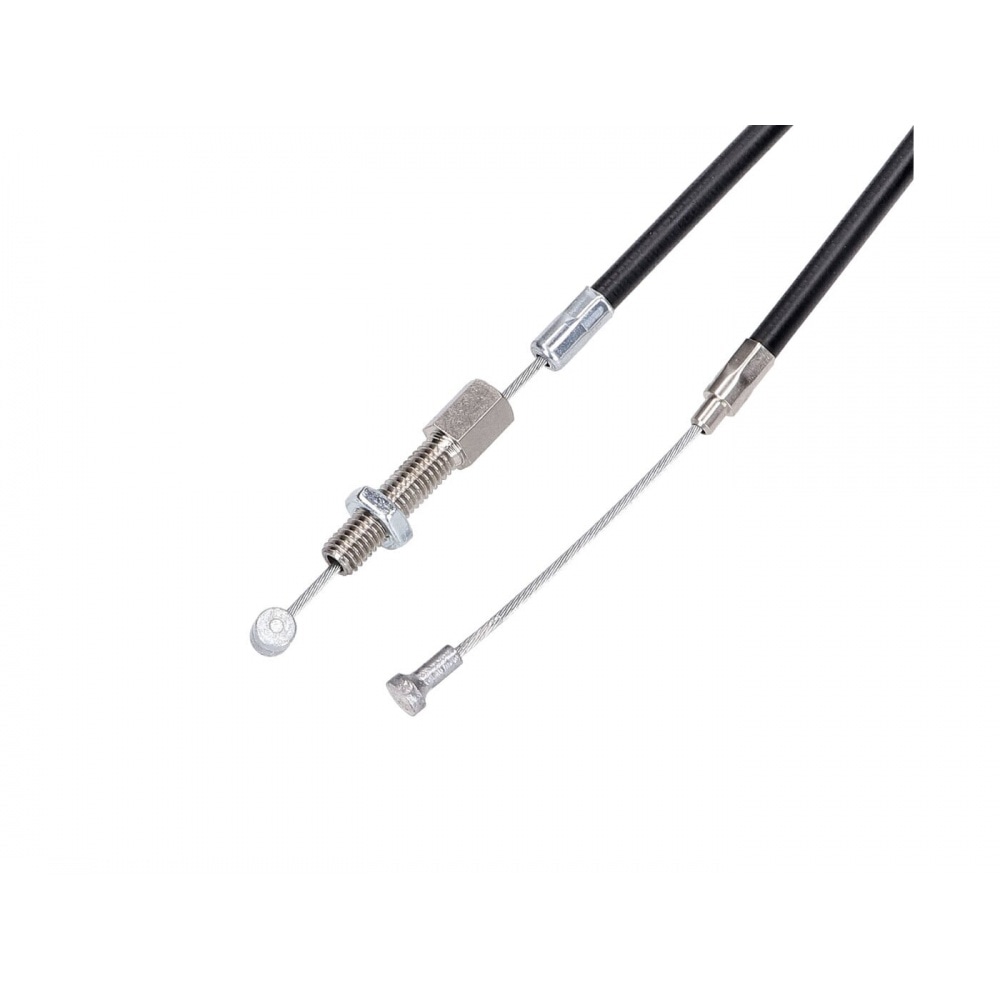

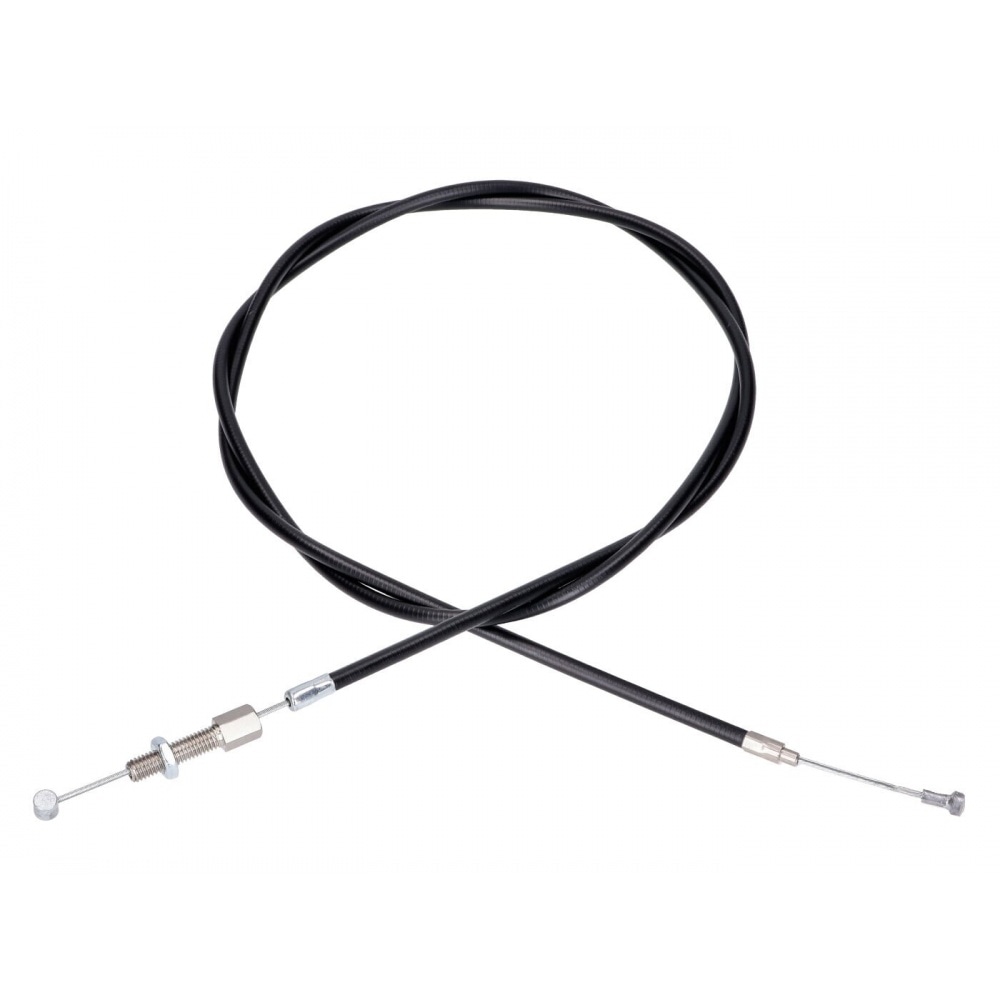

Gear Shift Cable Schmitt Premium Puch MV50 1-speed / MS50 / VS50 2-speed Magura

When producing their premium cables Schmitt go for the highest quality. The cables are handmade and therefore have an extremely precise fit.

The inner cables are made of special steel designed for bowden cables, they do not break as quickly as mass-produced cables that most of the time are made with more brittle stainless steel cores.

Schmitt cables are 100% faithful replicas of the original cables. They are made in the same design as was standard at the time the vehicles were manufactured. However, since such traditionally made inner cables tend to rust, they are lubricated with an Interflon high-performance grease to last a lifetime.

Fits Puch MV50 1-speed as well as MS50 und VS50 2-speed with Magura grip. OEM number for comparison: 910.6.06.001.2

Detailed dimensions:

• Total length: 127,5cm
• Sleeve length (incl. caps): 115cm
• Wire diameter: 1,5mm
• Sleeve diameter: 5mm
• Mid sleeve length: 8mm
• Mid sleeve width: 6mm
• Trumpet emd cap length: 15mm
• Trumpet emd cap diameter: 4-6mm
• Outer end cap length: 12mm
• Outer end cap diameter: 6mm
• Nut: M6
• Thread length: 22mm
• Length threaded bolt with hex screw: 34mm
• Nipple diameter (cylindrical): 6,5mm
• Nipple length: 6mm
• Trumpet nipple diameter: 6mm head / 3,5mm neck
• Trumpet nipple length: 11mm
