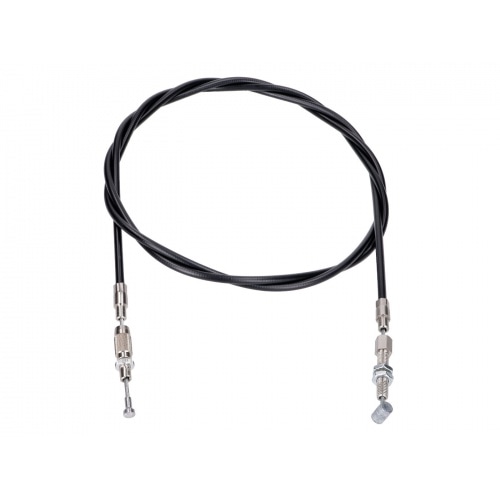

Brake Cable rear Schmitt Premium Puch Maxi L / L2 / S / S2 / SE / X30M / Super Maxi

When producing their premium cables Schmitt go for the highest quality. The cables are handmade and therefore have an extremely precise fit.

The inner cables are made of special steel designed for bowden cables, they do not break as quickly as mass-produced cables that most of the time are made with more brittle stainless steel cores.

Schmitt cables are 100% faithful replicas of the original cables. They are made in the same design as was standard at the time the vehicles were manufactured. However, since such traditionally made inner cables tend to rust, they are lubricated with an Interflon high-performance grease to last a lifetime.

For the rear brake of Puch Maxi L, L2, S, S2, SE, X30M, Supermaxi. OEM number for comparison: 910.8.18.004.2

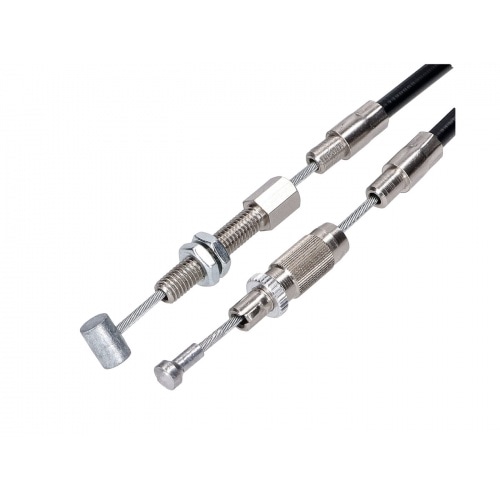

Detailed measurements:

• Total length: 166,3cm
• Wire diameter: 2mm
• Sleeve length (incl. caps): 152mm
• Sleeve diameter: 5mm
• Nut: M6
• Thread length: 29mm
• Length threaded bolt with hex screw: 40mm
• Diameter adjusting wheel: 10mm
• Length adjusting sleeve: 20mm
• Width adjusting sleeve: 9mm
• Thread length: 14mm
• Total length threaded bolt: 22mm
• Width with stop: 7mm
• End cap length: 21mm
• End cap diameter: 6-8mm
• Nipple diameter, cylindrical: 7mm
• Nipple length, cylindrical: 10mm
• Nipple diameter, ball: 6mm head / 3,5mm neck
