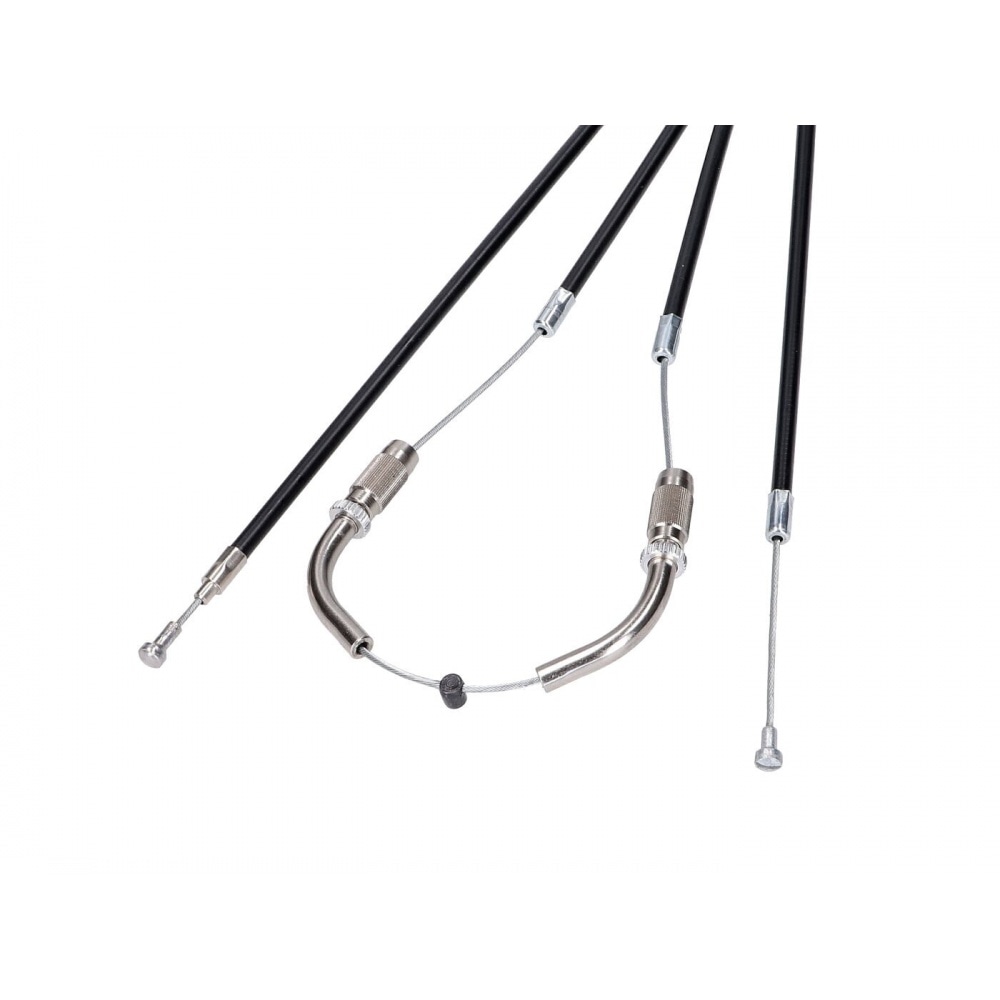

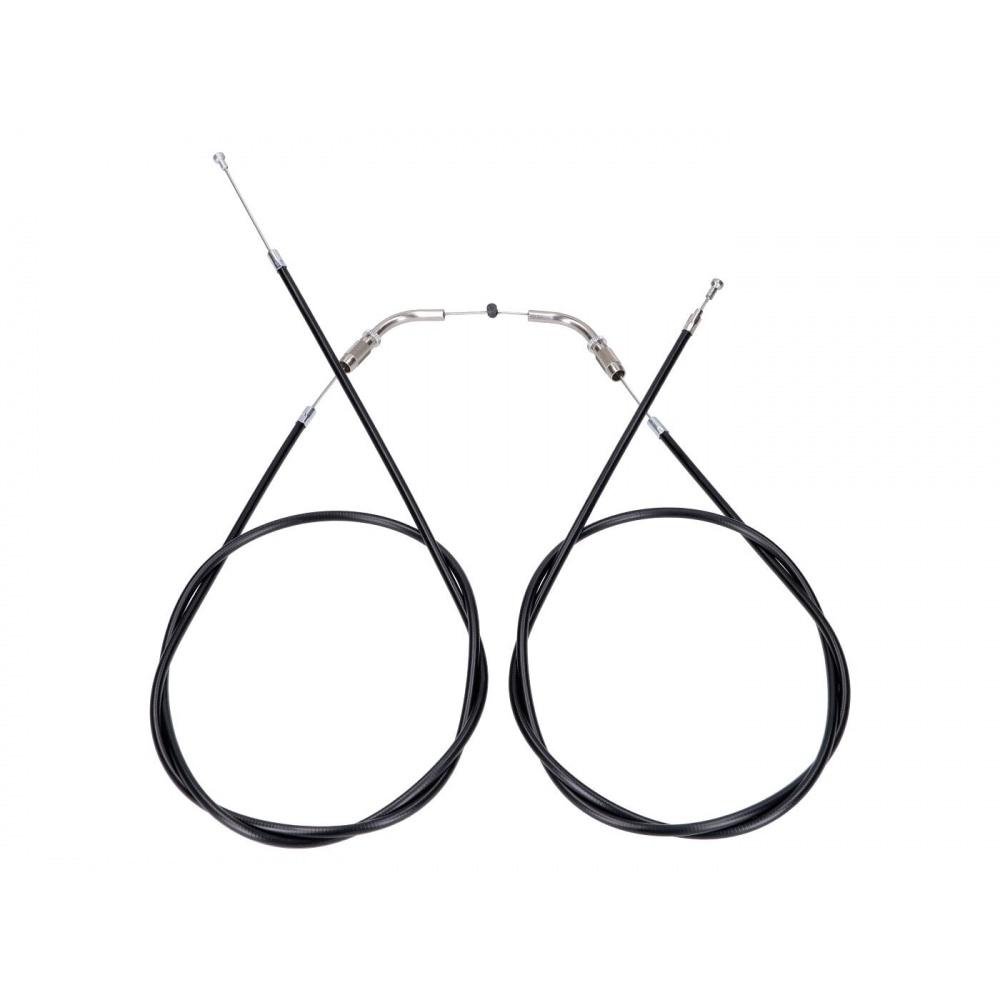

Gear Shift Cable Schmitt Premium Puch MS 50 / VS 50 Tour

When producing their premium cables Schmitt go for the highest quality. The cables are handmade and therefore have an extremely precise fit.

The inner cables are made of special steel designed for bowden cables, they do not break as quickly as mass-produced cables that most of the time are made with more brittle stainless steel cores.

Schmitt cables are 100% faithful replicas of the original cables. They are made in the same design as was standard at the time the vehicles were manufactured. However, since such traditionally made inner cables tend to rust, they are lubricated with an Interflon high-performance grease to last a lifetime.

Fits Puch MS50 and VS50 Tour. OEM number for comparison: 910.6.17.002.2

Detailed dimensions:

• Total length: 252cm
• Sleeve length (incl. caps): 106,5cm / 111,5cm
• Wire diameter: 1,5mm
• Sleeve diameter: 5mm
• Trumpet nipple length: 10mm / 11mm
• Trumpet nipple width: 6mm head / 3,5mm neck
• End cap length: 12mm
• End cap diameter: 6mm
• Trumpet end cap length: 15mm
• Trumpet end cap diameter: 4-6mm
• Mid sleeve: 5×6,5mm
• Elbows: diameter 6mm / Thread length 16mm
• Adjuster diameter: 10mm
• Adjusting sleeve: length 20mm / width 9mm
