Cylinder Polini Evolution 2010 94cc stroke=44mm Yamaha Aerox / MBK Nitro

Polini 94cc Cylinder Kit Evolution 2010 MBK Nitro / Aerox, 44mm stroke, (Minarelli horizontal LC, 13mm), the most powerful “Big Evo 2010” cylinder kit by Polini.

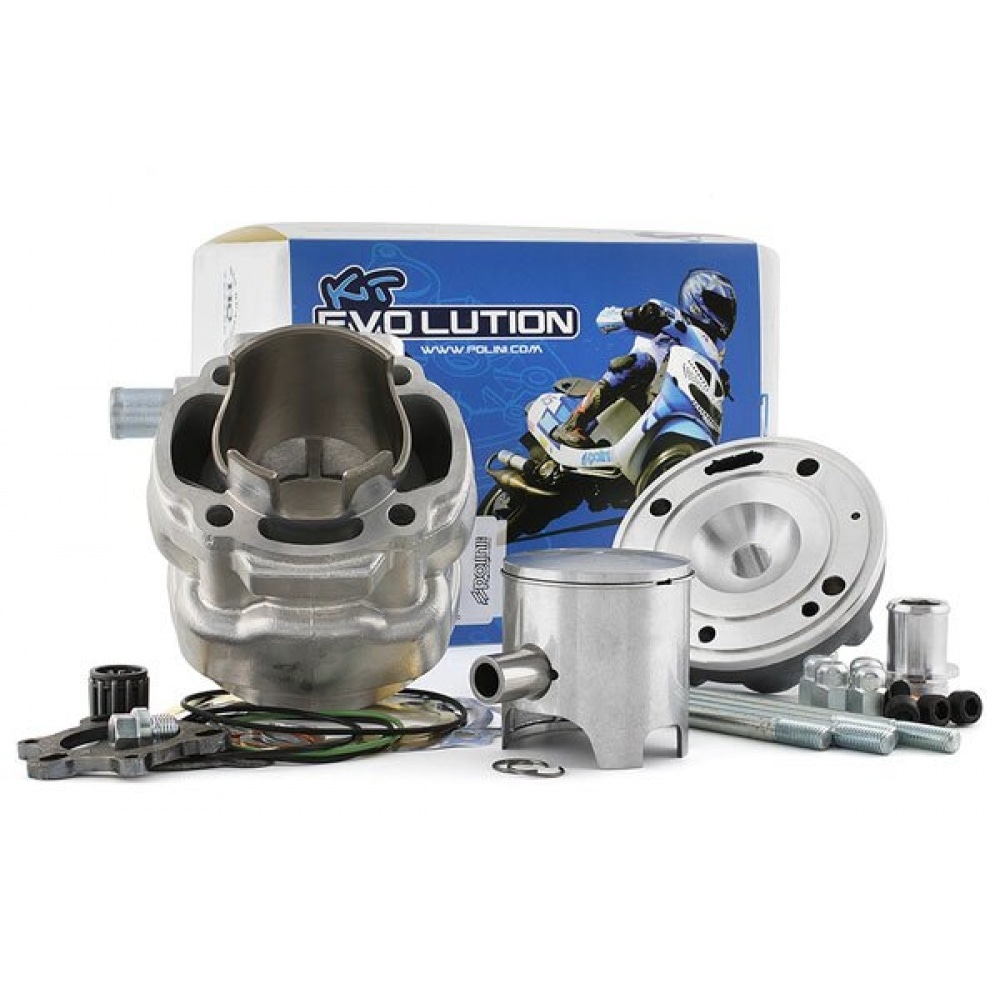

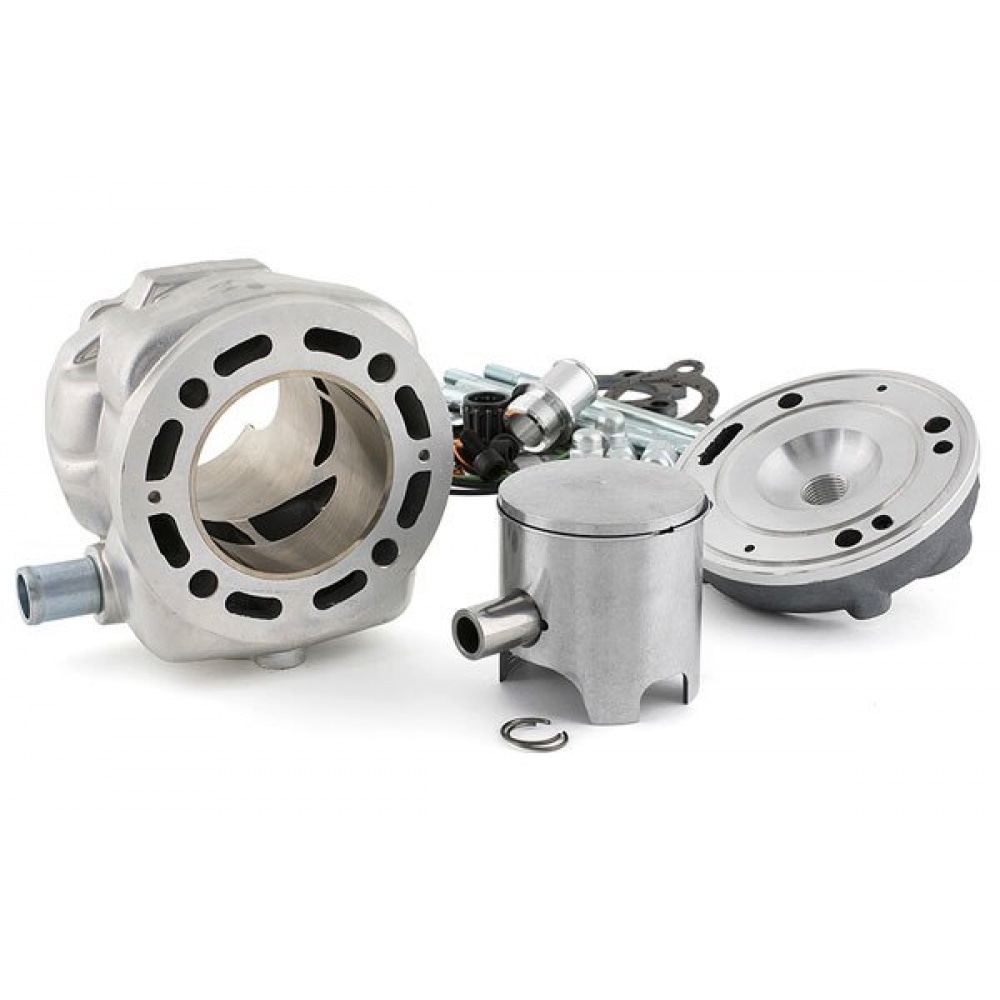

В комплект входят:

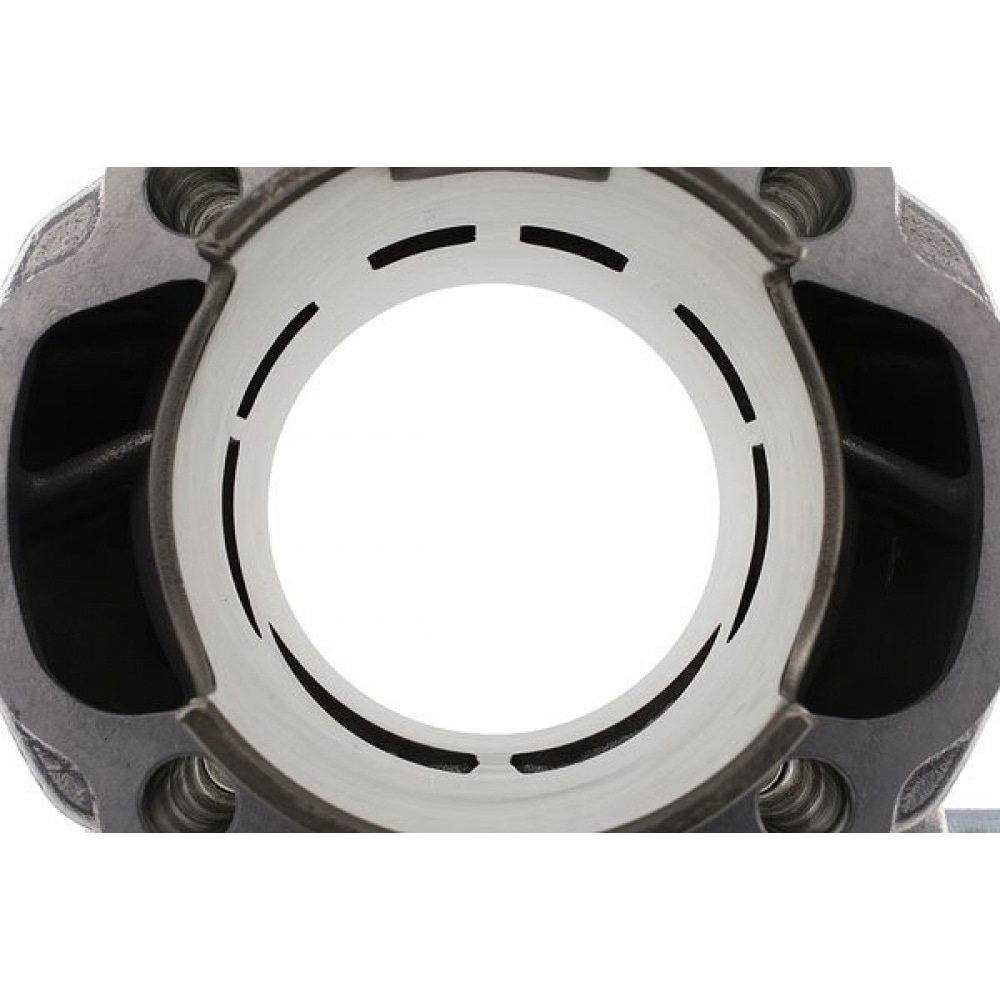

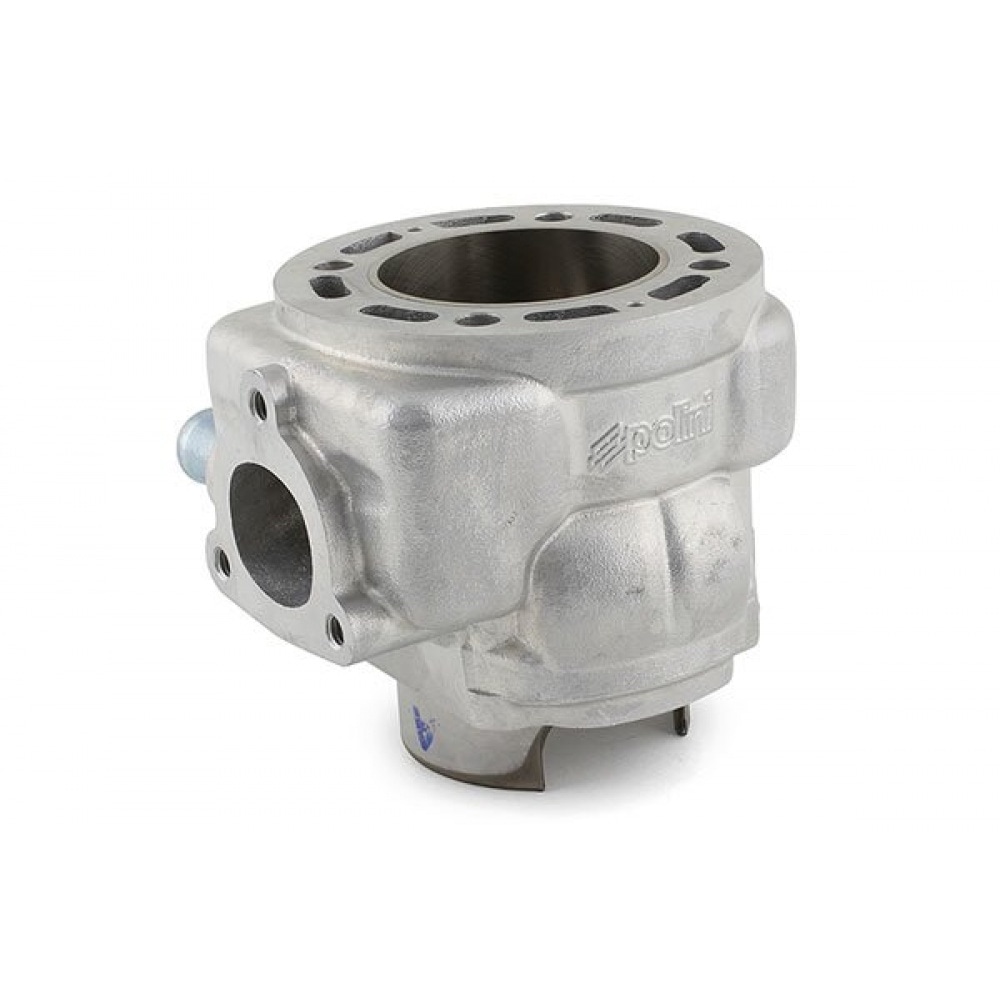

• 94cc Aluminium Cylinder “Evolution 2010”, d = 52mm / conrod = 85mm, with 6 transfer ports and a bridged exhaust port
• Single-Ring Piston, 13mm pin, d = 52mm (for small end bearing 13x17x17.7mm)

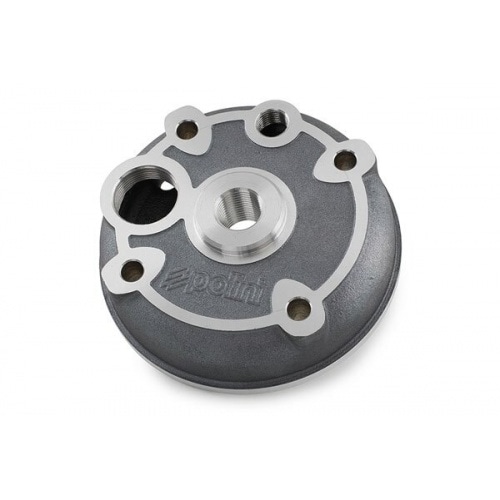

• High-Compression Monobloc Cylinder Head “Evo 2010”
• Gasket Kit for mounting and adjusting squish

Technically speaking, the Polini 94cc Cylinder Kit Evolution 2010 MBK Nitro / Aerox is a Nikasil-plated aluminium cylinder with 6 transfer ports and a divided, bridged exhaust port (new shape). It comes with a top quality one-ring piston (d = 52mm, 13mm piston pin) and a special monobloc cylinder head.

This kit is the biggest cylinder kit for scooters available at the moment, with a 52mm piston and a 44mm stroke, it ends up having 94cc displacement giving it a lot of torque. The kit falls into the “Hyper Racing” category and can reach between 23 and 25hp, provided that it is combined with the right components (Polini exhaust “Evo 94cc” or Roost exhaust BE94 and a 28-34mm carburetor).

Примечание 1: The exhaust flange has a different angle than the original (Piaggio flat type) and can only be used with a Polini Big Evo 94cc exhaust (same series) or a Roost BE94 exhaust.

Примечание 2: This kit can only be mounted with crankshafts that have a 85mm connecting rod, 44mm stroke and a 13mm pin (small end bearing 13x17x17.7mm), and you’ll have to mill in the crankcase to make room for crankshaft and cylinder base.
