Cylinder Kit DR 177cc cast iron Vespa PX 125

Cylinder kit DR Evolution 177cc Vespa PX 125 - 150

DR Evolution Minachrom cast iron cylinder 177cc - robust, high-torque tuning cylinder for Vespa PX / Cosa / Sprint 125 - 150 and LML Star 125 - 150. Designed for reliable performance, it comes from the same workshop as the Top Performances Black Trophy kits and delivers impressive power output at an affordable price.

FYI: Minachrome is DR's proprietary name for its specially hardened and refined cast iron mixture. These cylinders are built for exceptional durability, making them a top choice for daily riders looking for a balance of performance and longevity.

DR Evolution cylinder design

The cylinder has 7 transfer ports and comes with a 2-ring piston. Thanks to optimized port timing, enlarged transfer ports and a large exhaust port supported by boost ports, it offers excellent revving and plenty of power. Naturally, the drastic increase in displacement to 177cc is reflected in a nice increase in performance.

The high-quality 2-ring piston with special silicon content is fitted with chrome-plated 2mm heavy-duty piston rings. The slightly domed piston crown increases the compression ratio, while side openings on the rear skirt improve the intake and lubrication of the engine.

We recommend the use of a sports exhaust. The carburetor settings must be adjusted or a larger carburetor must be used.

DR recommends the use of an NGK B9HS spark plug.

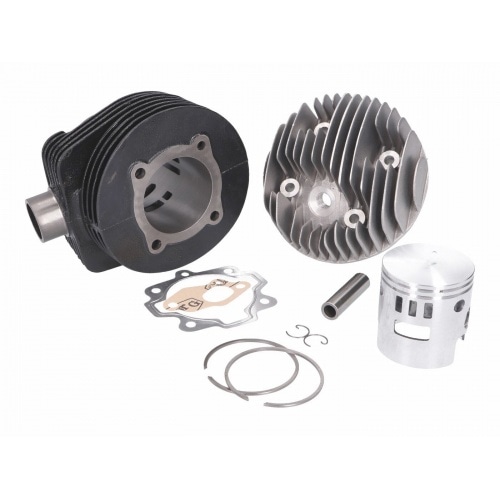

Contents DR cast iron sports cylinder

• 177cc cast iron cylinder
• Bore: 63 mm
• Stroke: 57 mm
• 2-ring piston, 2mm rings
• Aluminum HC cylinder head
• Compression: 1:8.5
• Gasket set included
