Digital Speedometer Stage6 R/T MK2 with EGT sensor black

Stage6 Dashboard MK 2 black with exhaust gas temperator sensor

The popular digital speedometer from Stage6 R/T received an upgrade: the MK 2 version of the Stage6 R/T multifunction dashboard instrument can now also display EGT (exhaust gas temperature).

The instrument is available in black, white and orange.

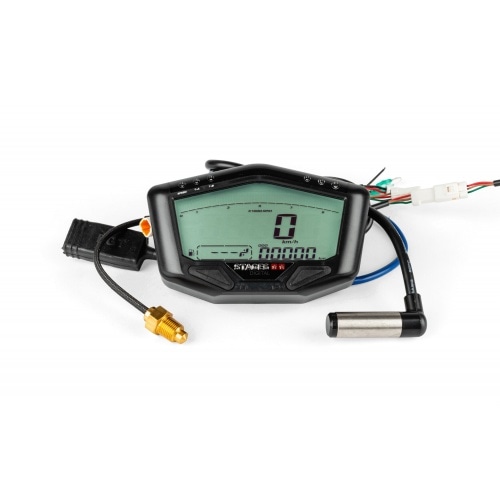

Stage6 Dashboard Functions

The display is backlit, the device measures 100x60x20mm and is run via the 12V on-board voltage.

RPM is measured inductively, speed via a magnetic sensor attached to the wheel. Speedometer adapters for Yamaha/MBK are also available so speed is transmitted directly to the speedometer via the speedometer drive.

Suitable for 2-stroke and 4-stroke engines, scooters, 50cc motorcycles (supermoto) and even cars!

extra Feature EGT Display

Using the new S6 R/T dashboard means you no longer need a second instrument to read the EGT temperature. With the help of the EGT sensor (included in this version), the exhaust gas temperature can be measured to optimize carburetor settings. The EGT values are displayed in real time and there's a memory function for the maximum values for water and EGT.

Stage6 have succeeded in expanding the already very comprehensive multifunctional device into a complete dashboard that meets all requirements.

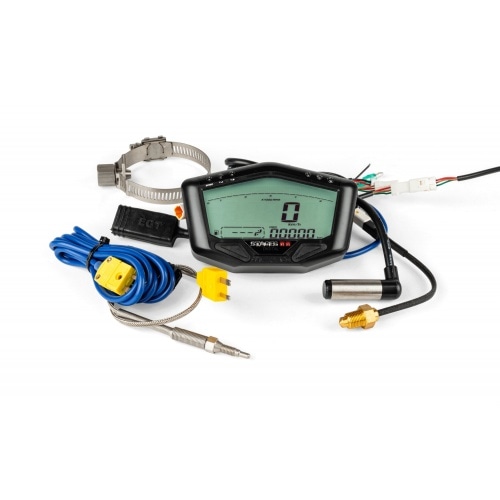

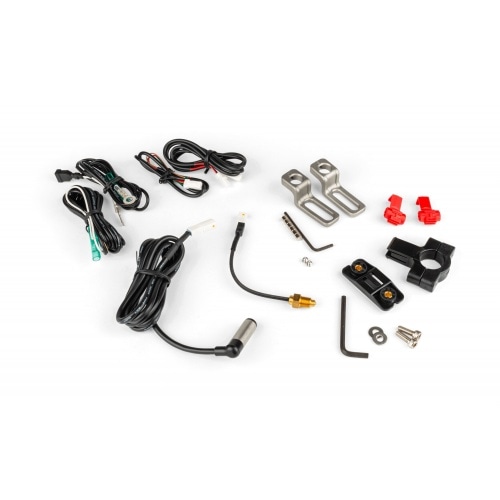

MK2 dashboard accessories

The speedometer is supplied with a PT-1/8 temperature sensor for water temperature.

Additional sensors (M10 x 1.0 or M14 x 1.25) are available as spare parts for Piaggio, Peugeot scooters and supermotos.

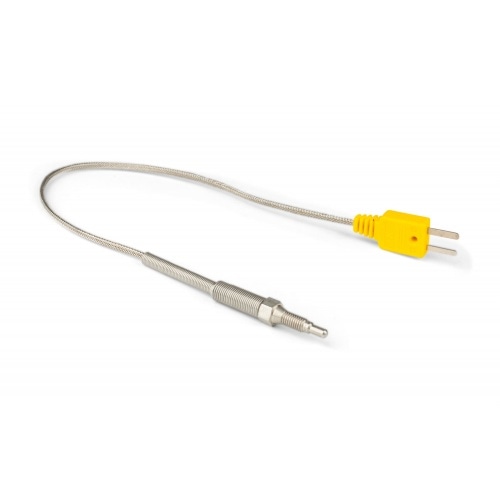

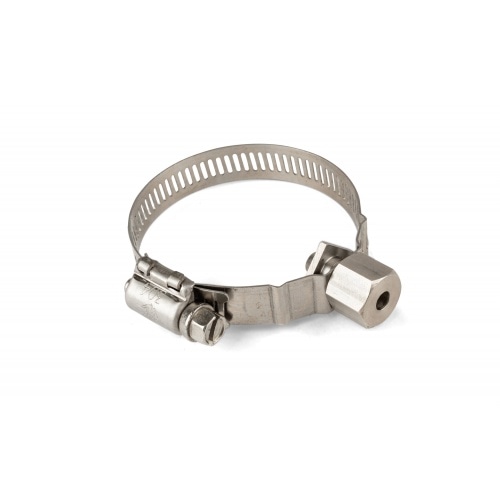

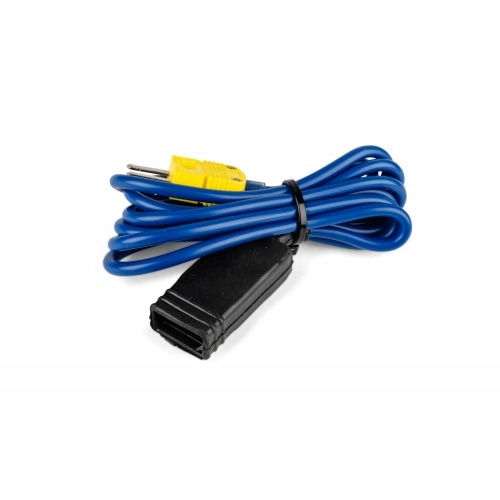

The EGT sensor, an EGT extension cable and the clamp for the EGT sensor (manifold) is also included.

Functions Stage6 R/T speedometer MK 2:

• Speedometer 0-360 km/h (alternatively mph)
• Tachometer up to 20,000 rpm
• Scalable speed graph
• EGT exhaust gas temperature
• Thermometer 0-250° C (PT-1/8' sensor)
• Hour meter 0-999.9 h
• Fuel gauge 0-100%
• Voltmeter 0-18.0 V
• Odometer, shift light, top speed memory, temperature alarm

In addition, a timer function is integrated which allows the following data to be measured:
- Time required to reach a specified speed.
- Time required to reach a specified distance.
