S6-8019309

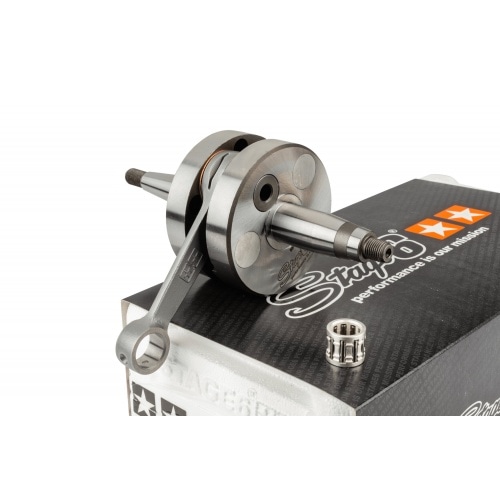

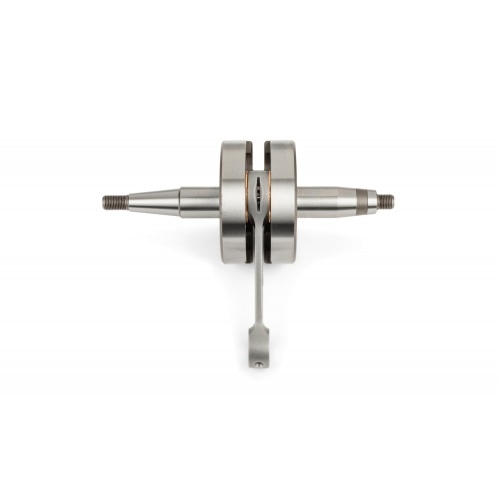

Albero motore Stage6 HPC Derbi Euro 3 / Euro 4 corsa 44mm
Delivery from German Warehouse - Pirmdien
Available to order
165.90€ 205.00€
Racing HPC crankshaft Stage6 HPC 44mm stroke Derbi D50B0
High-quality tuning parts from Stage6: Crankshaft Stage6 HPC 44mm stroke / 90mm connecting rod Derbi Euro 3 / Euro 4, the perfect crankshaft for racing and high-end cylinders.
Design and advantages of Stage6 HPC crankshaft
Tuning specialist Stage6 developed this High Primary Compression (HPC) crankshaft especially for tuned racing and heavily tuned high-end racing engines.
The high-precision full-circle crankshaft has been optimized through targeted material reduction on the shoulder side, allowing it to achieve excellent balancing in combination with the lightweight metal counterweights used. The connecting rod, specifically designed for this crankshaft, features a width of 14 mm (instead of 12 mm), significantly increasing its strength. This reduces bearing wear while ensuring enhanced stability, even at extremely high rotational speeds.
Use of the Stage6 long-stroke crankshaft HPC
This HPC crankshaft was built for more heavily tuned engines and offers the possibility of significantly increasing the displacement of a 70cc or 80cc engine by adding a cylinder spacer and reworking the cylinder. For optimum performance we recommend the Top Peformances 86cc cast iron Derbi cylinder.
For optimum installation, we recommend the use of a new crankshaft bearing set, new engine gaskets and Stage6 gear oil. You can find all these parts at the bottom of the page.
Note:
- The crankcase must be machined in the area of the connecting rod so that it runs freely. We recommend dry fitting so you can clearly see the connecting rod.
Technical data racing crankshaft HPC from Stage6
- Connecting rod: 90mm (original)
- Stroke: 44mm
- Piston pin: 12mm (original)
- Small end bearing: 12x17x15mm
- Balance factor: 54%
- Maximum speed: 16,000 rpm
- Use: Racing / High End Racing
- Derbi Euro 3 / Euro 4 (Derbi, Aprilia, Gilera from 2006)
- Article no.
- S6-8019309
- Brand
- Stage6
- Conrod Length
- Standard
- EAN
- 4051272039652
- Needle bearing
- 12x17x15mm
- Piston Pin
- 12 mm
- Product type
- Crankshaft
- Series
- HPC
- Stroke
- 44 mm
- Tuning Level
- High-end
- Weight
- 2,50 kg
- Aprilia
- RS4 50cc (after 2011 - D50B0 Euro 3);RS 50 Euro 4;RS 50cc (D50B0) - 2006 - 2011;RX 50 (as from 2006 D50B1);RX 50cc Factory Euro 4 ;RX Enduro 50cc (D50B0) - after 2006;SX 50cc Euro 4;SX 50cc Factory Euro 4 ;SX SM 50cc (D50B0) - after 2006;
- Derbi
- GPR 50cc after 2012;GPR 50cc Nude 2005 2011 (D50B0 Euro 3);GPR 50cc Racing 2005 - 2011 (D50B0 Euro3);Senda DRD PRO Racing SM(after 2005)-(D50B0 Euro 3);Senda DRD PRO SM (after 2005) - (D50B0 Euro 3);Senda DRD Racing 50 SM after 2011 - (D50B0 Euro 3);Senda DRD X-Treme 50 R '10 - '17 - (D50B0 Euro 3);Senda DRD X-Treme SM '10 - '17 - (D50B0 Euro 3);Senda Racing SM Euro 4;Senda R DRD PRO Enduro (after 2005) -(D50B0 Euro 3);Senda R DRD Racing Enduro (after 2005)-(D50B0 Euro 3);Senda R X-Race Trail '05 - '10 - (D50B0 Euro 3);Senda R X-Treme Enduro '05 - '10 - (D50B0 Euro 3);Senda SM Limited Euro 4;Senda X-Race SM '05 - '10 - (D50B0 Euro 3) ;Senda X-Treme R Euro 4;Senda X-Treme SM '05 - '10 - (D50B0 Euro 3) ;Senda à partir de 2018;
- Gilera
- RCR Enduro 50 (as from 2011 D50B0);RCR Enduro 50cc 2006 (D50B0) - (perimeter);RCR Euro 4;SMT Euro 4;SMT SM 50 (2011-2012 D50B0 ZAPABB00);SMT SM 50 (after 2013 D50B0 ZAPABB01);SMT SM 50cc 2006 (D50B0) - (perimeter);
- None
- None
- Valenti Racing
- RME;SM 50;
