MF19.14045/PACK
Tuning Kit Cylinder + Crankshaft Motoforce Piaggio AC
Delivery from German Warehouse - Aptuvenais pieejamības datums: 06.04.2026.
Out Of Stock
129.20€ 131.80€

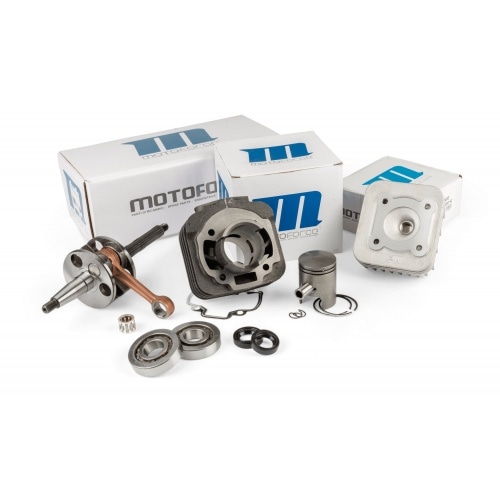

Motoforce engine kit Piaggio Zip: 50cc cylinder + crankshaft
With this kit, you can fully rebuild your Piaggio AC engine (Zip 2T, NTT / Typhoon, Gilera Stalker etc.). It includes the main components – cylinder and crankshaft – which are perfectly matched for easy installation, no modifications required. The ideal solution to restore full performance to your air-cooled 50cc Piaggio engine – reliable, precise, and built to original factory specifications.
The main advantage of this kit is that all parts are carefully matched to work together smoothly. All necessary gaskets, seals, and bearings are included for a complete, hassle-free installation.
contents OEM style engine pack:
- 50cc cylinder kit with pistons and accessories
- OEM quality cylinder head
- OEM quality crankshaft
- Cylinder gasket set
- Bearings and seals
50cc cylinder MotoForce zip
The 50cc MotoForce cylinder matches the original Piaggio AC engine in all technical details. Made of cast iron, it features the same number of transfers and identical exhaust port design. The 2-ring piston with 12mm wrist pin and circlips is included and ready for direct installation.
- Bore: 40mm
- Material: cast iron
- Pin: 12mm
- Included: Piston, rings, pin and circlips
OEM style cylinder head Typhoon TPH
This cylinder head is a high-quality, cost-effective alternative to the original. It meets all technical requirements for reliable operation in 50cc engines. Its universal design is compatible with both original cylinders and aftermarket replicas, making it suitable for future upgrades or maintenance.
Crankshaft OEM Quality Piaggio
The included crankshaft exactly matches the dimensions and specifications of the original. It provides the same pre-compression and running dynamics as the stock crank. A robust and economical solution for replacing a worn or damaged crankshaft, maintaining the original measurements, balance and tolerances. Includes HQ small end bearing.
Crankshaft bearings and oil seals
The kit includes reinforced, high-quality bearings designed for long life and smooth operation. Supplied as matched pairs with the corresponding seals to ensure perfect sealing and a quiet, reliable engine.
- Article no.
- MF19.14045/PACK
- Bore
- 43 mm
- Brand
- MotoForce
- Conrod Length
- Standard
- Cylinder material
- Cast Iron
- Displacement
- 50cc
- Piston Pin
- 12 mm
- Product type
- Engine pack
- Spark plug thread
- M14 long
- Stroke
- Original
- Tuning Level
- Original
- Weight
- 4,09 kg
- Aprilia
- Mojito Custom 50cc (Piaggio engine);Scarabeo 50cc AC (2005-2006) (Piaggio engine);Scarabeo Classic 2 stroke Euro 4;Sportcity Street 50cc;SR Motard 50cc (after 2011);
- Derbi
- Atlantis 50cc AC (after 06/2002) - Piaggio;Boulevard 50cc;Bullet 50cc AC - Piaggio;
- Gilera
- Easy Moving 50cc AC;Ice 50cc AC;Stalker 50cc AC (after 1999);Stalker 50cc AC (before 1999);Stalker Naked 50cc;Storm 50cc AC;TPH 50cc AC (before 2011);TPH X 50cc AC (before 2011);
- Italjet
- Jet Set 50cc AC;Torpedo 50cc AC - Piaggio;
- None
- None
- Piaggio
- Diesis 50cc AC;Fly 50cc AC;Free 50cc AC (after 1999);Free 50cc AC (before 1999);Liberty 50cc AC;NRG mc2 Extreme 50cc AC;NRG mc3 DT 50cc AC CAT;NRG Power DT 50cc AC (after 2005);Sfera 1st series 50cc AC (1991 - 1994);Sfera NSL 50cc AC;Sfera RST 50cc AC;Storm 50cc AC;TPH 50cc AC (after 2010);TPH 50cc AC (before 2010);TPH X 50cc AC (before 2010);Vespa S 50cc 2-stroke AC;Zip 1st series 50cc AC (1991 - 1994);Zip 2 50cc AC CAT (after 1999);Zip Base 50cc AC (after 1999);Zip Base 50cc AC (before 1999);Zip FastRider 50cc AC;Zip RST 50cc AC (1996-2000);Zip SSL 25 (after 1999);Zip SSL 25 (before 1999);
- Vespa
- ET2 50cc AC after 2000 ZAPC38100;ET2 50cc AC ZAPC 16000;LX 50cc AC - 2-stroke;LXV 50cc 2-stroke AC;Primavera 50cc 2T AC after 13;S 50cc 2T AC after 07;Sprint 50cc 2T AC after 14;
