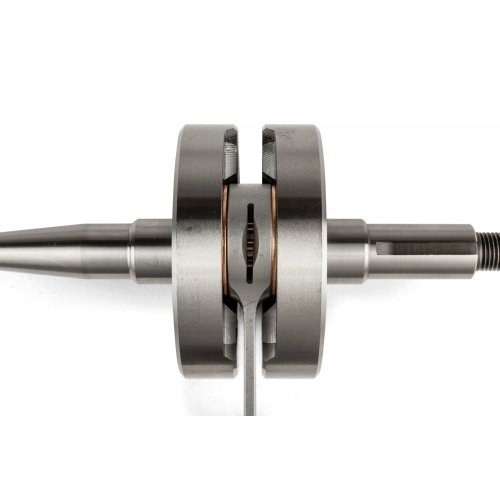

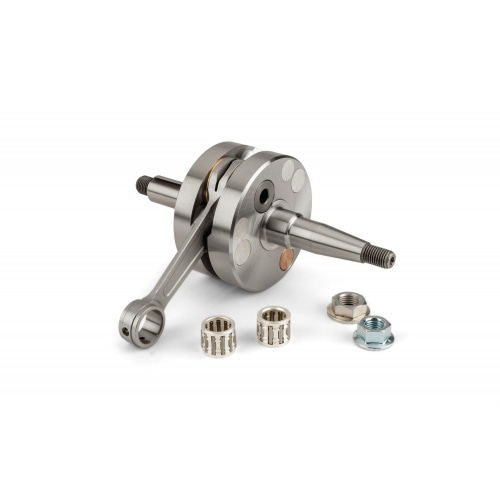

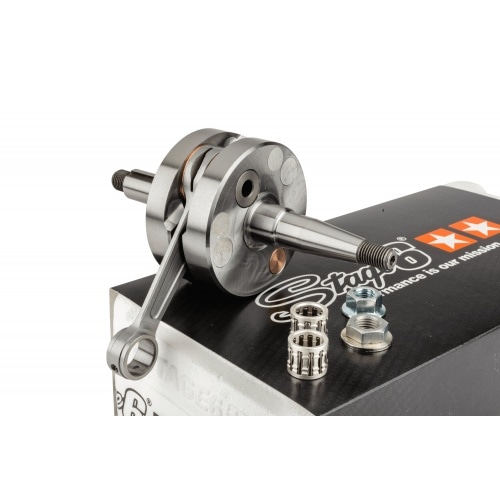

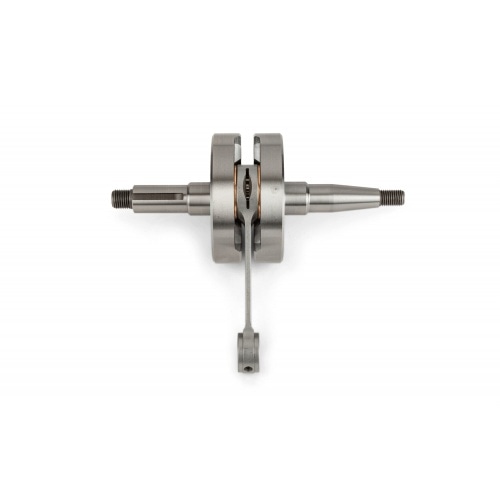

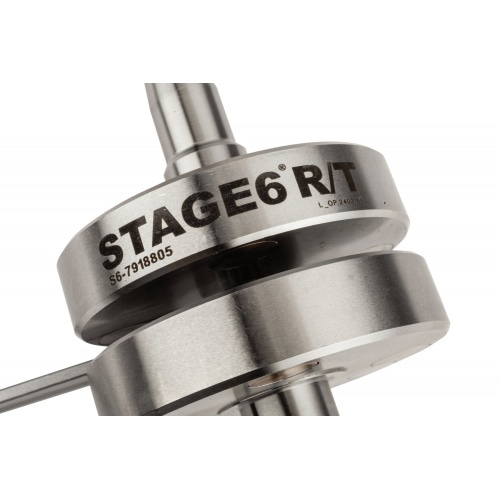

Crankshaft AM6 Stage6 R/T 44mm stroke 90mm connecting rod
Delivery from German Warehouse - Pirmdien
Available to order
304.00€ 423.00€
Stage6 R/T high-end crankshaft with 90mm connecting rod
Stage6 R/T crankshaft with 90mm connecting rod / 44mm stroke for 50cc motorcycles with Minarelli AM6 engine, high-end long-stroke crankshaft for racing.
Advantages of Stage6 R/T racing crankshaft
Elaborately balanced high-end racing full circle crankshaft with tungsten inserts.

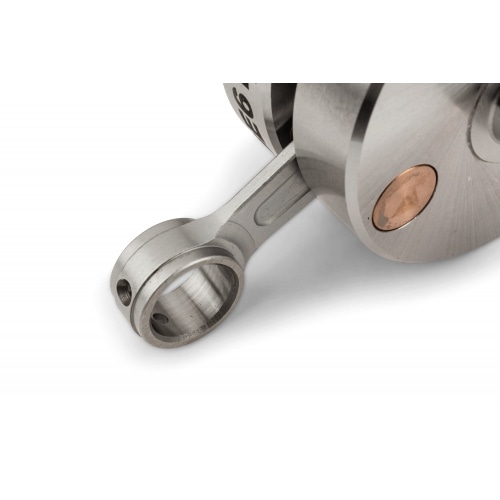

The tuning crankshaft is characterized by precise manufacturing and adherence to tight tolerances. The CNC-milled connecting rod is extremely durable and offers maximum strength for use in high-revving racing engines, while at the same time optimizing the flow characteristics.
The very precise balancing via high-quality tungsten inserts prevents strong vibrations and ensures optimally smooth engine running. The crank pin measures 18mm instead of 16mm, the crank webs have an increased diameter of 77mm; both increase the load bearing strength and durability of the crankshaft. It goes without saying that the needle bearing is also of the highest quality.
Compatibility and installation of S6 racing crankshaft
The racing crankshaft fits the Stage6 R/T 95cc AM6 cylinder perfectly, but is also a good choice for all similar high-end cylinders with 44 mm stroke / 90 mm connecting rod.
Plug & Play Installation - The Stage6 R/T crankshaft can be installed without further modifications, without the need to mill the crankcase. We recommend using a set of new crankshaft bearings.
Technical data Stage6 R/T crankshaft for AM6:
Tuning level: High-end Racing
- Connecting rod length: 90mm (+ 5mm longer than original)
- Stroke: 44mm
- Crankpin: 18mm
- Diameter crankwebs: 77mm
- Journals: 20mm
- 1x small end bearing 12x17x15mm
- 1x crankshaft nut M12x1.25
- 1x crankshaft nut M10x1.25
- For 50cc motorcycle with Minarelli AM6 engine
- Article no.
- S6-7918805
- Brand
- Stage6 R/T
- Conrod Length
- 90 mm
- EAN
- 4051272032684
- Needle bearing
- 12x17x15mm, 14x17x16,6mm
- Product type
- Crankshaft
- Series
- R/T
- Stroke
- 44 mm
- Tuning Level
- High-end
- Weight
- 2,80 kg
- Aprilia
- AF1 50cc (AM6);MX 50cc (AM6);RS 50cc (AM6) - (after 1999);RS 50cc (AM6) - (before 1999);RX 50cc (AM6);RX Enduro 50 (until 2003 AM6);Special Engine AM6;Tuono 50cc (AM6);
- Beta
- RK6 50;RR-T 50 SM;RR 50 Enduro;RR 50 Enduro (perimeter);RR 50 SM (perimeter);RR 50 SM 50;RR 50 Track;RR 50cc Motard;
- CH Racing
- WSM SM Racing 50cc (AM6, Euro 2);WXE Enduro Racing 50cc (AM6, Euro 2);
- Fantic Motor
- Caballero SM 50cc;Casa 50 (AM6);Performance 50 (AM6);Regolarita Casa 50cc (AM6);XE 50;XM 50;
- Generic
- Trigger SM 50cc (AM6);Trigger X-Enduro 50cc (AM6);X-Enduro 50cc (AM6);
- HM-Moto
- Cre/Baja Enduro 50cc (version 2006) AM6;Cre/Six SM 50cc (version 2005) AM6;Cre/Six SM 50cc (version 2006) AM6;Dérapage SM Compétition 50cc (version 2005) AM6;Dérapage SM Compétition 50cc (version 2006) AM6;
- Husqvarna
- CH Racing 50cc (AM6);SM Cross 50cc (AM6);WR 50cc (until 2000 AM6);WSM 50cc after 2000;
- Keeway
- SM 50;
- Kreidler
- Supermoto 50cc;
- KSR
- TR 50;
- Malaguti
- Drakon Naked 50cc (AM6);XSM Supermotard 50cc (AM6) - (after 2003);XTM Enduro 50cc (AM6) - (after 2003);
- Masai
- Furious 50;Razer 50cc;Rider 50;SM 50;X-Ray 50;
- MBK
- X-Limit Enduro 50cc (after 2003) AM6 (perimeter);X-Limit Enduro 50cc (before 2003) AM6 - (tubular);X-Limit SM 50cc (after 2003) AM6 - (perimeter);X-Limit SM 50cc (before 2003) AM6 - (tubular);X-Power 50cc (AM6) - (after 2003);X-Power 50cc (AM6) - (before 2003);
- MH Motorhispania
- Furia Max Enduro/SM 50cc (AM6) - (tubular);RX Super Racing 50cc (AM6);RYZ Enduro/SM 50cc (AM6) - (perimeter);
- None
- None
- Peugeot
- NK7;XP6-Enduro 50cc (AM6) - (tubular);XP6-Supermotard 50cc (AM6) - (tubular);XP7;XPS-Enduro 50cc (AM6) - (perimeter);XPS-Street EVO2 50cc (AM6) - (perimeter);XPS-Supermotard 50cc (AM6) - (perimeter);XR6 50cc (AM6);XR7;
- Rieju
- Drac (AM6);MRT 50cc;MRT 50cc Pro;MRT 50cc Pro SM;MRT 50cc SM;MRX Enduro 50cc Pro (AM6);MRX Euduro 50cc (AM6);RR Enduro 50cc (AM6);RRX Enduro 50cc (AM6);RS-1 Evolution 50cc (AM6);RS2 Matrix 50cc (AM6);RS2 NKD 50cc (AM6);RS3 50ccm (AM6);SMX SM 50cc (AM6);SMX SM 50cc Pro (AM6);Spike 2 50cc (AM6);Tango 50cc (AM6);Vent RR (AM6);
- Sherco
- HRD Enduro 50 (1998 - 2005);SE-R 50 (2013 - 2017);SE-R 50 after 2018 (2018 -);SE 50 (2006 - 2012);SM-R 50 (2013 - 2017);SM-R 50 after 2018 (2018 -);SM 50 (2006 - 2012);
- Vent
- Baja 50cc;Baja RR 50cc;Derapage 50cc;Derapage RR 50cc;
- Yamaha
- DT 50cc (1995-02) AM6;DT 50cc (after 2003) AM6;DTR Enduro 50cc (after 2003) AM6 - (perimeter);DTR Enduro 50cc (before 2003) AM6 - (tubular);DTX SM 50cc (after 2003) AM6 - (perimeter);DTX SM 50cc (before 2003) AM6 - (tubular);TZR 50cc (AM6) - (after 2003);TZR 50cc (AM6) - (before 2003);
