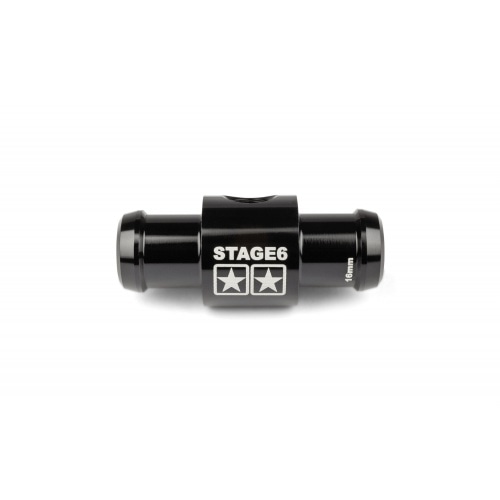

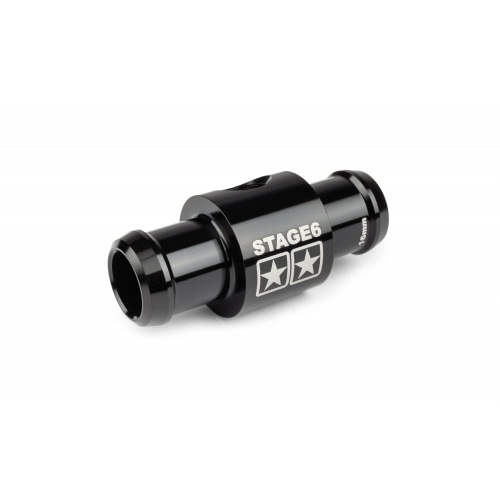

Tee Connector D.16mm for temperature sensor Stage6 black

Stage6 Temperature Sensor Adapter

Adapter with 16 mm outer diameter for easy integration of a temperature sensor (e.g. Stage6 or Koso) into the cooling circuit.

A practical solution if you're reusing an existing thermometer or need to bridge a non-matching thread. The anodized T-adapter is installed directly into the coolant hose – perfect for engines where the sensor can’t be mounted in the cylinder head.

Installation stage6 T-piece

Installation is very simple: First bleed the cooling system. Then select the spot on the radiator hose where the T-piece will go. Cut the hose and insert the T-piece. Now you can mount the PT1/8 temperature sensor of your Stage6, Stage6 R/T or Koso device.

This allows you to keep an eye on the engine temperature at all times while giving your setup a clean, upgraded look.

If you don't like cutting the original radiator hose: No worries - you'll find a large selection of radiator hoses in our store.

Details Stage6 T-adapter for temperature sensor

• T-adapter, black anodized with Stage6 logo
• Threaded connection PT 1/8

• Outer diameter: 16mm

When installing, it is recommended to bleed the cooling system and fill up with fresh coolant.
