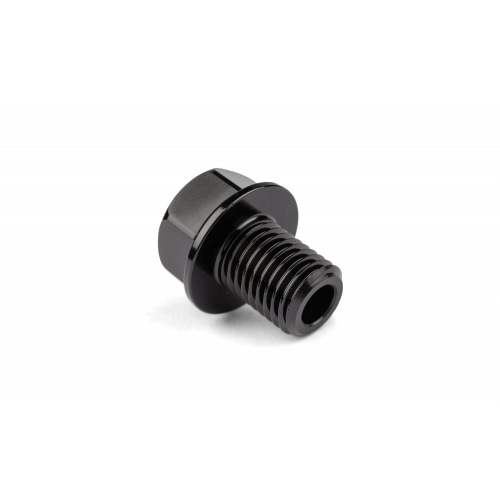

Temperature Sensor Adapter Stage6 M12x1.5x15mm Piaggio / Derbi black

Stage6 adapter for temperature sensor m12x1.5

Adapter bolt for fitting the PT 1/8 threads of Stage6 and Koso temperature sensors to the cylinder head. Makes installation easy on models where the temperature sensor is screwed directly into the head.

Installing Stage6 M12x1.5 adapter

Installation is simple: drain the coolant, remove the original plug or sensor from the cylinder head, then screw in the adapter. The internal PT 1/8 thread allows direct installation of temperature sensors from Stage6, Stage6 R/T or Koso. This gives you full control over engine temperature – functional and clean-looking.

The adapter is mainly compatible with Derbi Euro 4 and liquid-cooled Piaggio engines. If it doesn’t fit your cylinder, you can use the Stage6 T-piece for installation between two coolant hose sections.

Tip: When installing, bleed the cooling system and top up with fresh coolant.

Details Stage6 adapter screw

• Connection thread: M12 x 1.5 - length 15mm
• Internal thread: PT 1/8 (sensor not included!)
• Black anodized aluminum
• Suitable for Piaggio LC / Derbi Euro 4 and others
